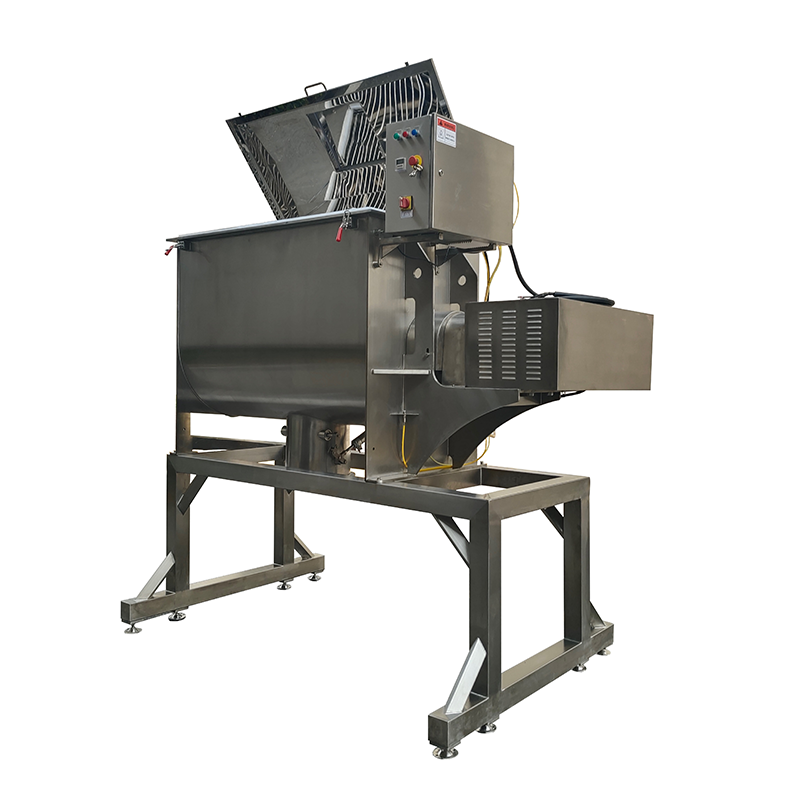

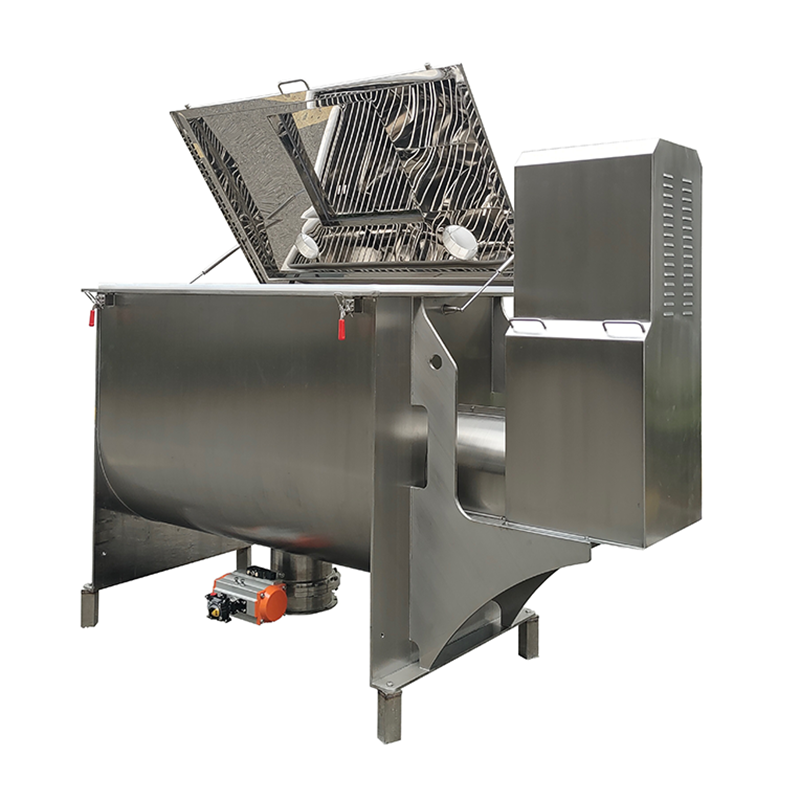

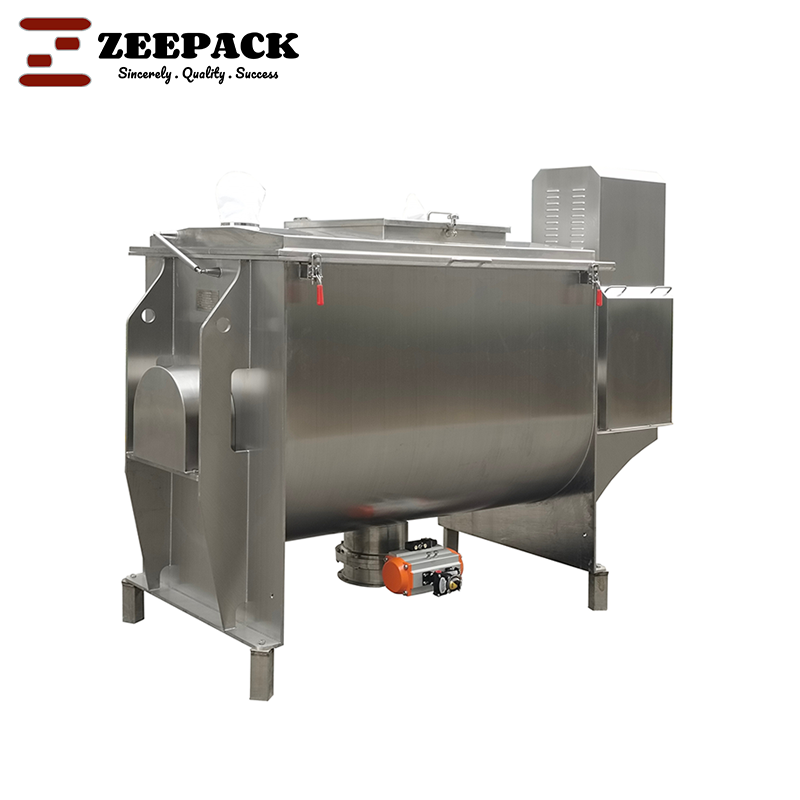

Ribbon Mixer & Blender

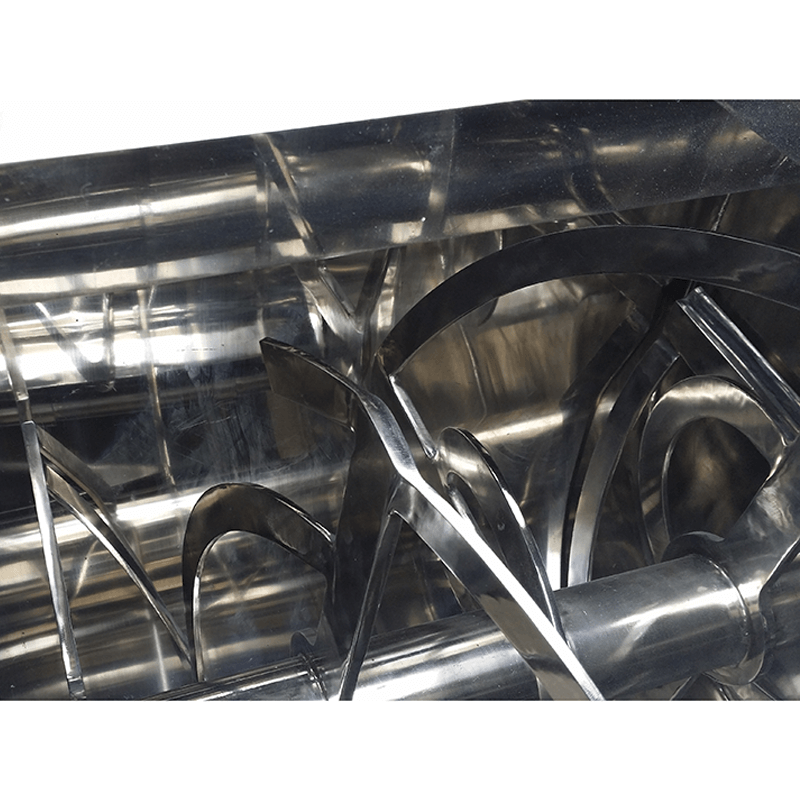

Ribbon Mixer: U-tank with dual-action spiral. Outer ribbons move material centerward, inner screws push outward for convective mixing. Handles sticky/cohesive powders/granules + minor liquids/pastes. High-efficiency blending. Full-top access for cleaning/part changes.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Feature ▼

1. Horizontal U-tank design,easy to clean

2. Single shaft + symmetrical dual spirals

3. Top feed with liquid spray option

4. Zero-residue arc valve (pneumatic/manual)

5. High-speed mixing via discontinuous ribbons

6. Jacketed temp control (steam/water/electric)

Technical Parameters ▼

Model	RB-300	RB-500	RB-1000	RB-1500	RB-2000
Effective Volume	300L	500L	1000L	1500L	2000L
Fully Volume	404L	692L	1286L	1835L	2475L
Fully Coefficient	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8
Turning Speed	46rpm	46rpm	46rpm	46rpm	46rpm
Total Weight	350kg	500kg	700kg	1000kg	1300kg
Total Power	5.5kw	7.5kw	11kw	15kw	22kw
Machine Dimension	19009001200mm	205010501250mm	250012001350mm	295013501400mm	330015001650mm
Power Supply	3P AC208-415V 50/60Hz

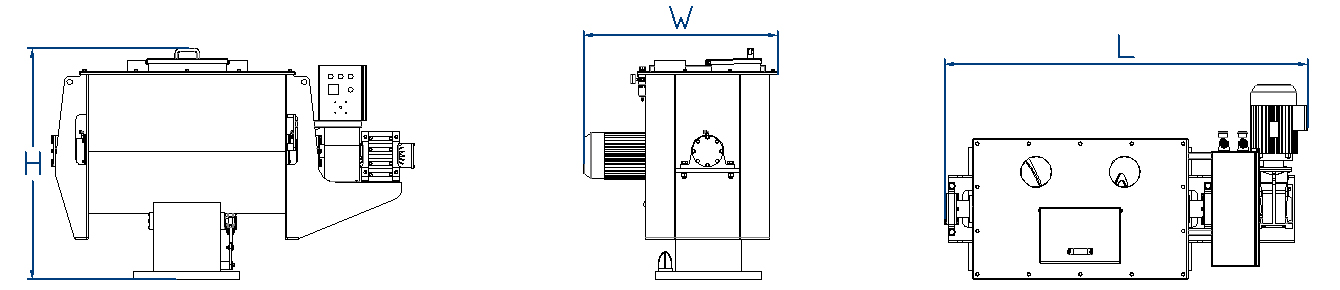

Layout Dimension (Base On Different Model) ▼
