The Mix-Blend System

Product Description ▼

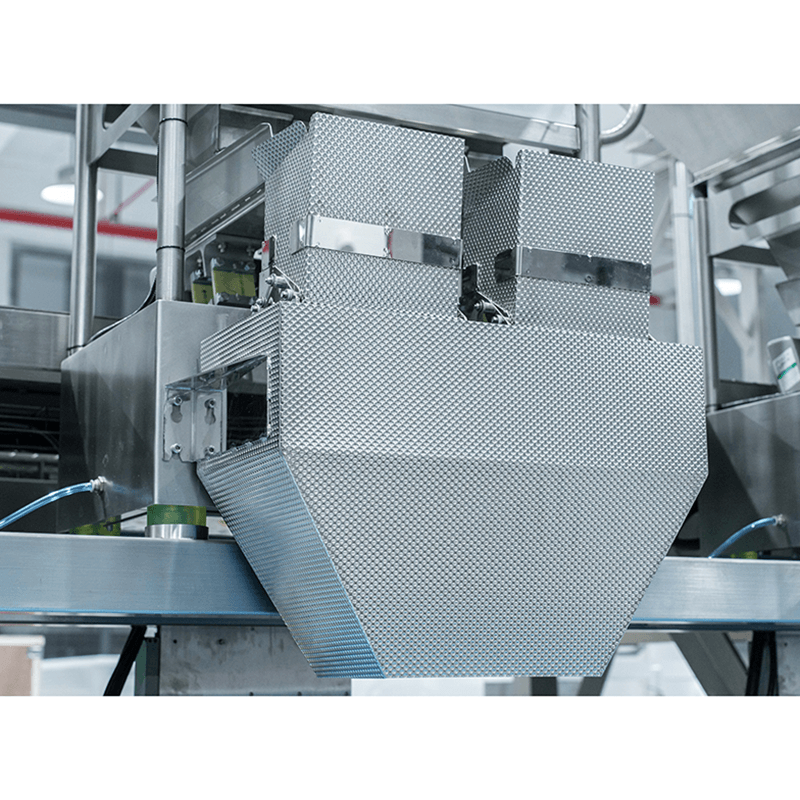

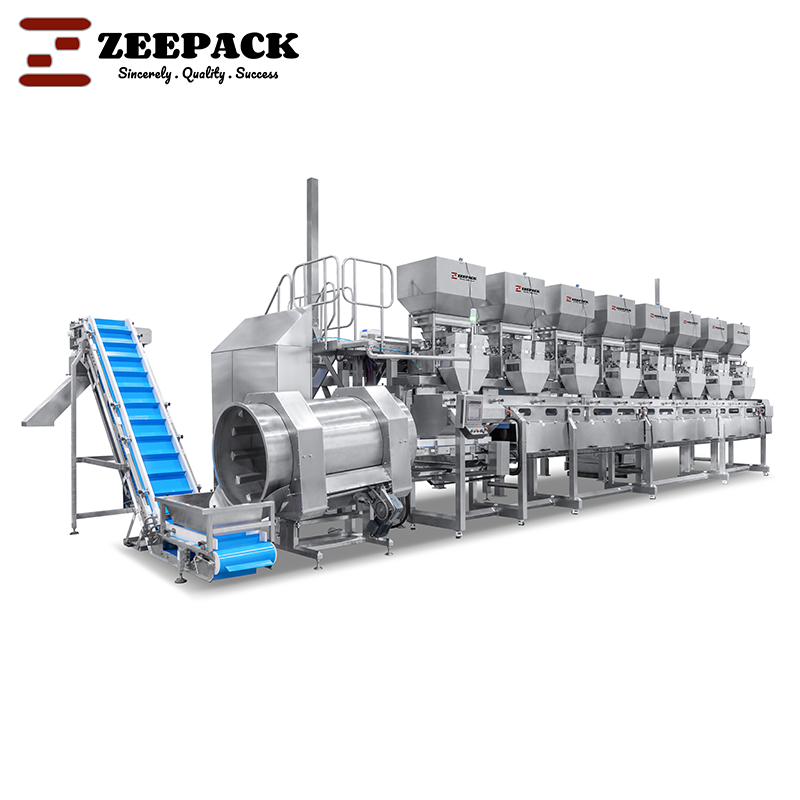

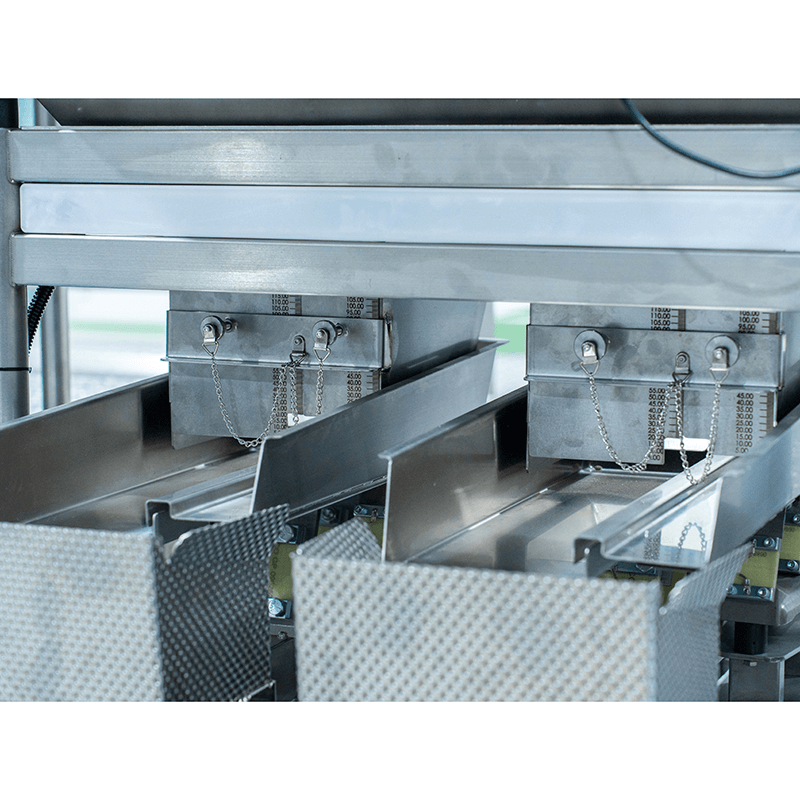

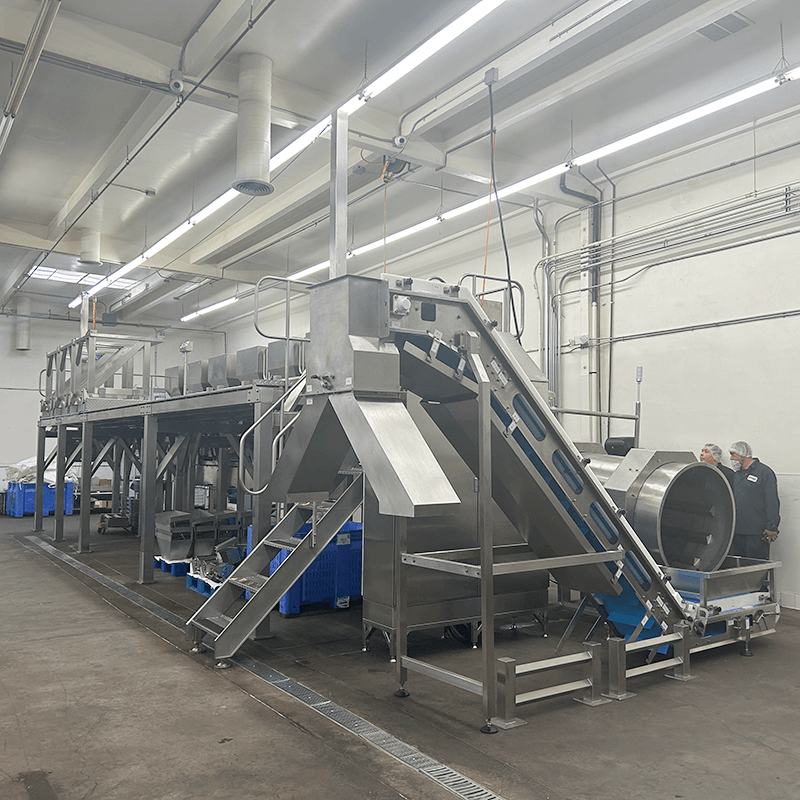

Automatic Mix-Blend System is mainly composed of vibration host, electrical distribution box, touch screen control cabinet, several set linear weigher, conveyor and roller mixer.

This trail mixing system can automatically complete the work of measurement and combination. Man-machine interface, touch screen operation, PLC real-time tracking, the machine has a single-bucket single-use mode. The whole machine is made of stainless steel except for electrical parts.

The main function of the equipment: ABCDEFGH a total of 8 work stations as an example, can be freely combined formula. The working station and formula ratio can be freely adjusted, stored and accessed according to the actual situation.

The equipment can choose the ratio of 2 stations, 3 stations, 4 stations, 5 stations, 6 stations, 7 stations and 8 stations at will for automatic mixing.

Take 10000g (10kg) of four materials as an example:

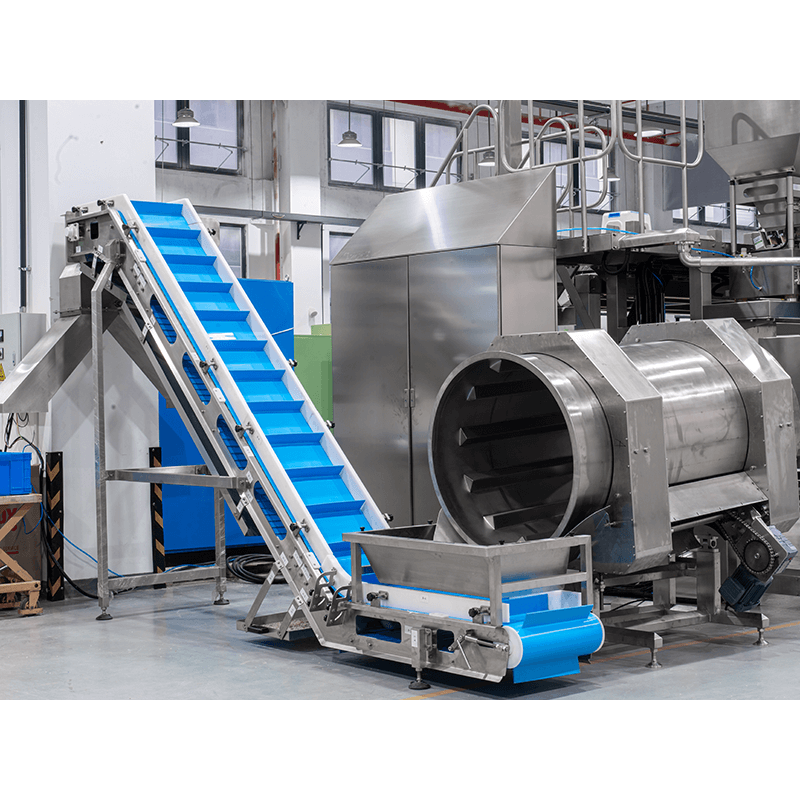

A-25%(2500g), B-10%(1000g), C-30%(3000g), D-35%(3500g), the system will automatically weigh the ingredients according to the working station and the proportioning weight of this formula, and then convey into the roller mixer to final mixing.

Finally, the trail mix nuts can enter into bins or supersacks directly, or can connect directly with the hopper of packing machine or the hopper of elevator, etc, it can achieve online work.

It has the characteristics of fast speed, higher precision, high stability, strong anti-interference, corrosion resistance, easy cleaning, good appearance, long life and so on.

Feature ▼

1. Safety: Urgent button for all machine components

2. Stable: Smooth mechanical design for low operational noise.

3. Flexibility: Tool-need changeover and adjustment, enhancing adaptability.

4. Ease Of Cleaning: Collect hopper for easy removal of dirty products, streamlining the cleaning process.

5. High Configuration: Siemens Control System for top-tier performance.

6. Efficiency: Production capacity up to 2tons/hour (depend on product).

7. Ease of Operation: Short resolution time for any operational issues, ensuring smooth production.

8. Ease of Maintenance: Driven system designed for easy accessibility, allowing quick inspection and maintenance.

9. Elegant: Meticulous polishing and expert welding for a visually appealing and sophisticated appearance.

Technical Parameters ▼

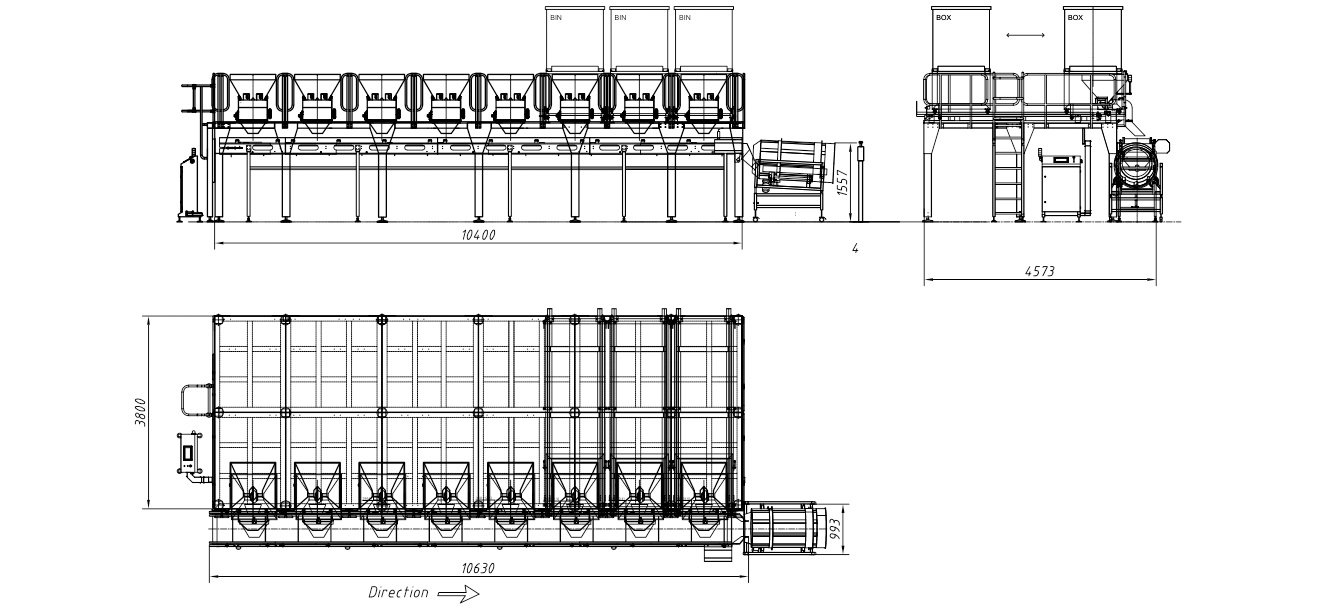

Layout Dimension (Customized) ▼
