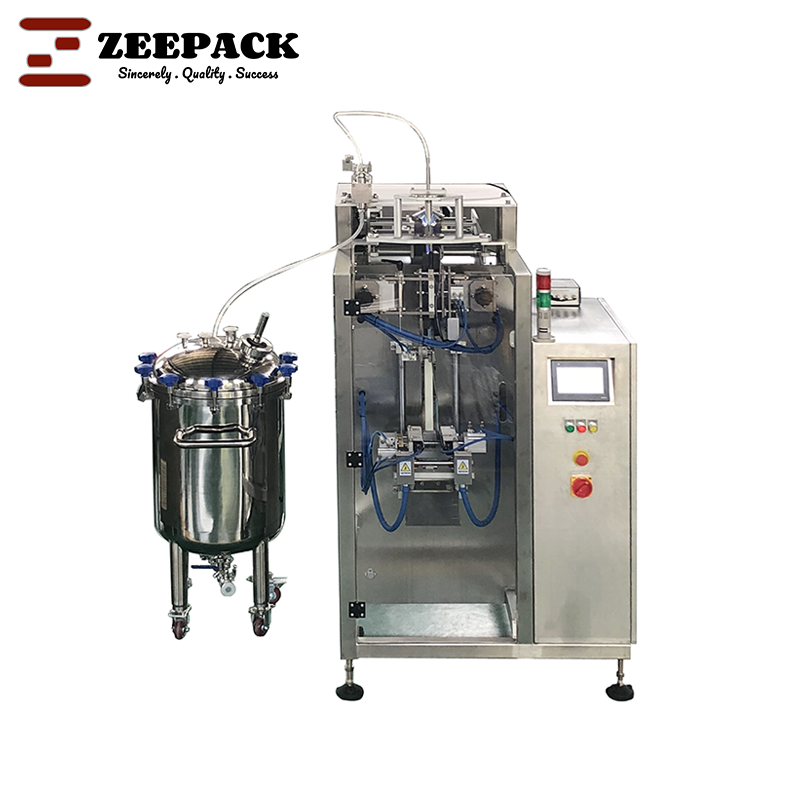

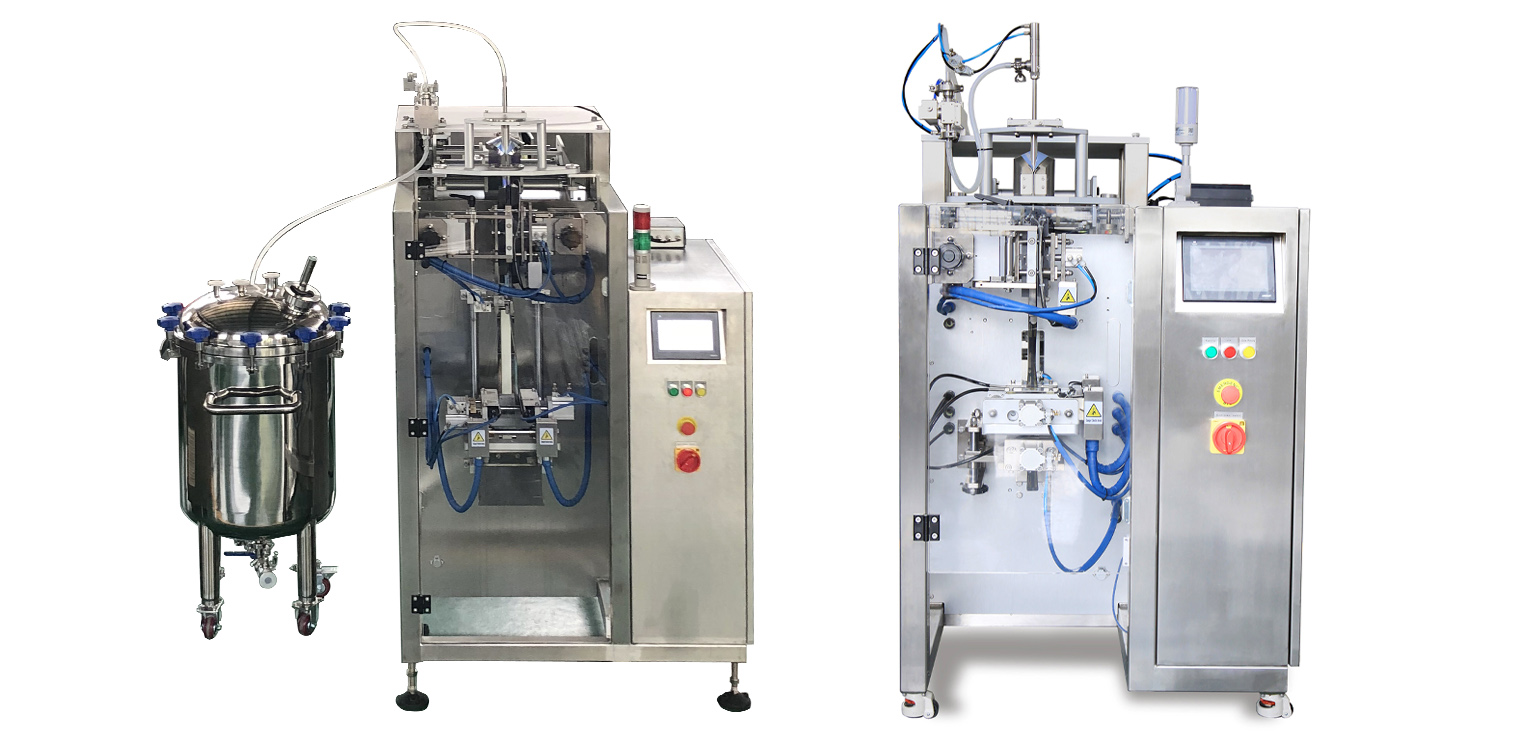

ZEEPACK’s Auto Liquid & Paste Vertical Sachet & Stick Bag Packaging Machine (Model: BP240L) is a high-efficiency packaging solution built on VFFS (Vertical Form Fill Seal) Technology. It automates the entire process of bag forming, quantitative filling, sealing, and bag cutting—ideal for businesses aiming to streamline production of liquid and viscous paste products. With a packing speed of 30-50 bags/min and a maximum bag volume of 116ML, this machine supports diverse bag sizes (W20-110mm × L50-180mm) and is constructed with 304 Stainless Steel to meet strict sanitation standards for food, daily chemical, and pharmaceutical industries. Its core advantage lies in adaptability: it works seamlessly with 3&4 Side Seal Bags, Stick Bags, and Triangle Bags, making it a versatile choice for small to medium-batch production.

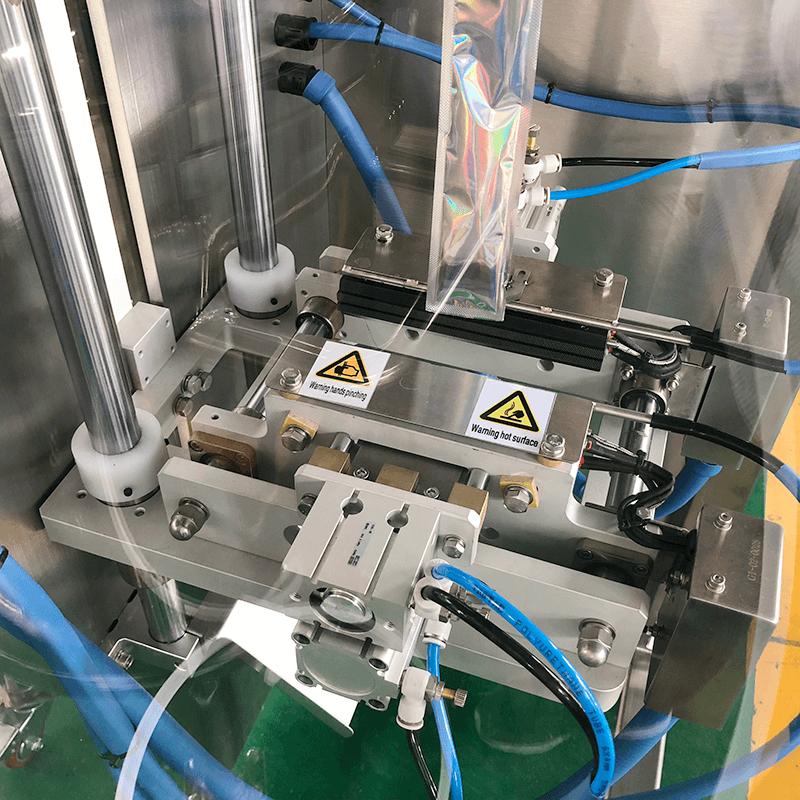

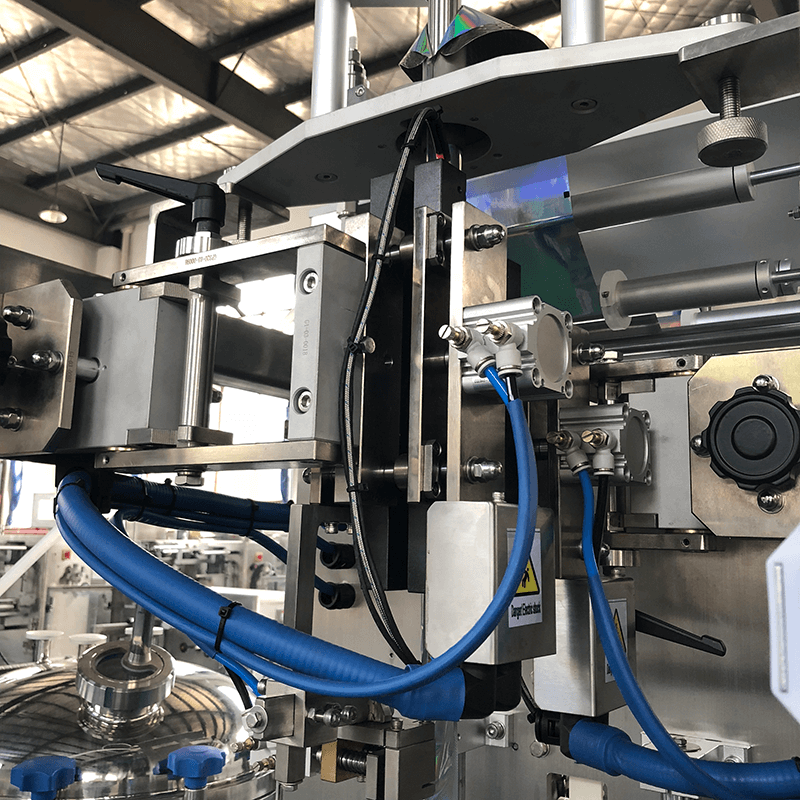

Equipped with Servo-Driven Film Transport, the machine ensures stable, accurate film feeding to avoid bag misalignment. The Continuous Motion Servo End Seals deliver consistent, leak-proof seals—critical for preserving product freshness (e.g., for honey or CBD oil).

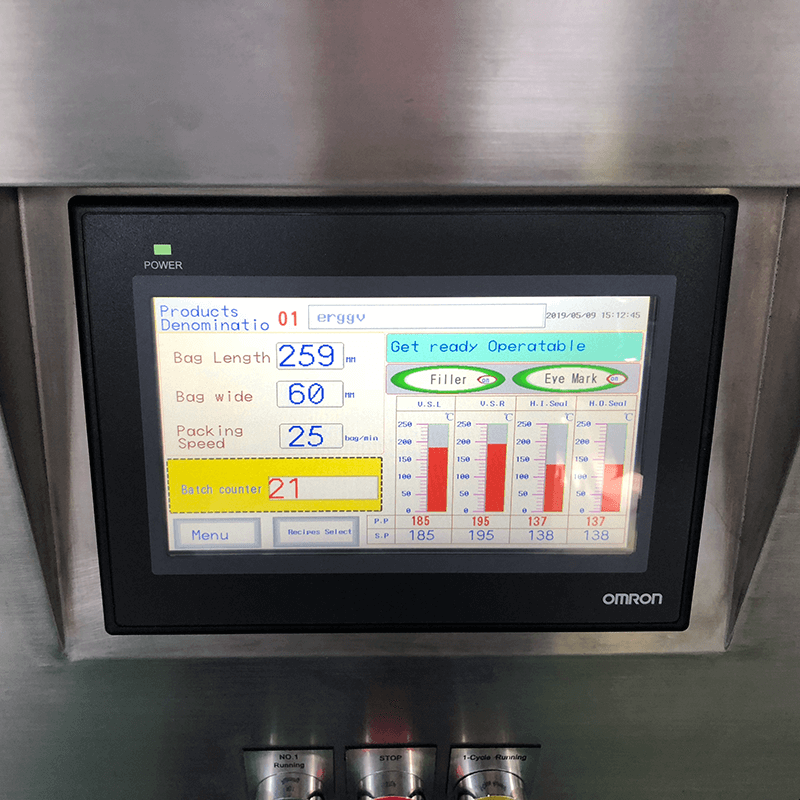

The PLC/Touchscreen Interface offers multilingual support and access control, allowing operators to adjust parameters (e.g., filling volume, bag length) without technical expertise. Quick Bag Size Change is enabled via single-piece formers, reducing downtime when switching between products (e.g., from shampoo sachets to salad dressing sticks). Additionally, Photocell Printing Centering guarantees clear, aligned printing on every bag.

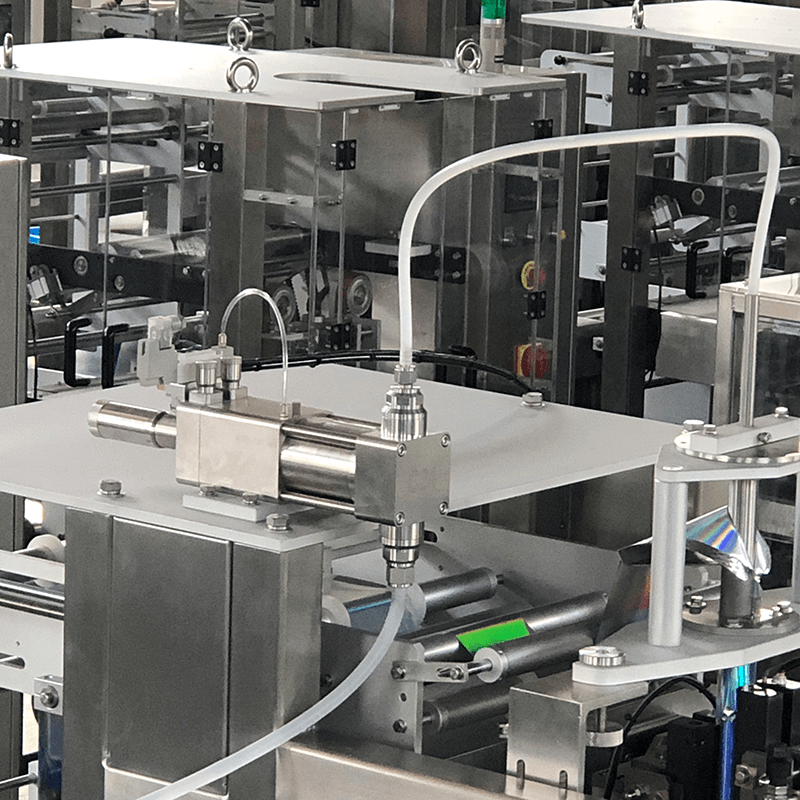

The 304 Stainless Steel Construction resists corrosion and is easy to clean, complying with food-grade and pharmaceutical hygiene requirements. The optional Piston Pump Dosing System (customizable per material) ensures precise filling for thin liquids (e.g., juice) and thick pastes (e.g., mayonnaise) alike.

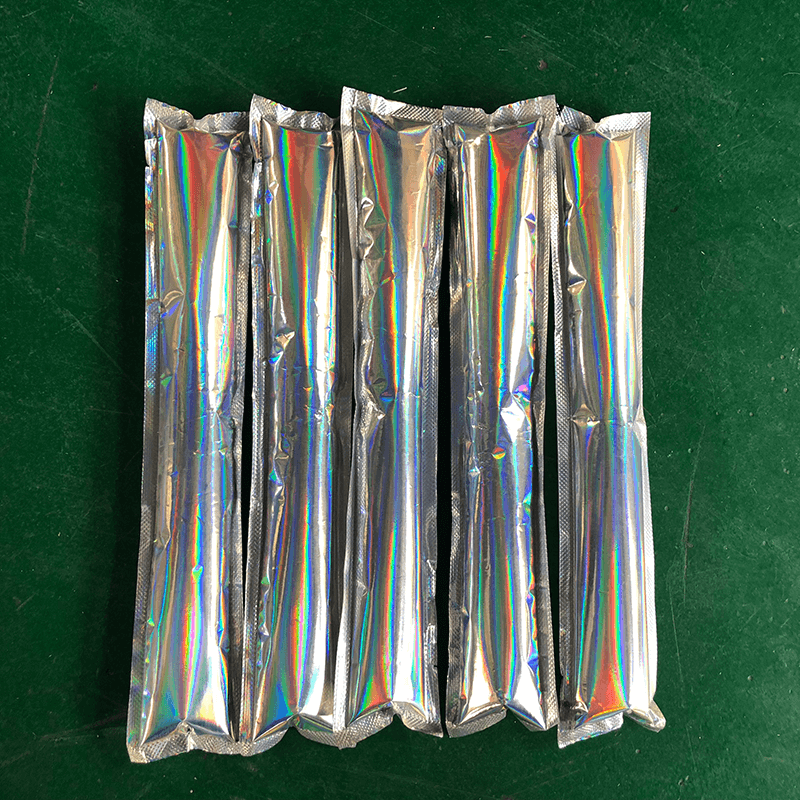

Ideal for packaging liquid seasonings (soy sauce, vinegar), dairy products (cream, yogurt), and sweeteners (honey, chocolate sauce). It excels with Stick Bags for single-serve portions (e.g., coffee creamer) and 3&4 Side Seal Bags for larger quantities (e.g., 100ML cooking oil).
Perfect for small-batch packaging of shampoo, shower gel, detergent liquid, and conditioner. Common in hotels, travel kits, or sample giveaways. The machine’s leak-proof sealing prevents product spillage during transport.
Suitable for CBD oil, herbal extracts, and topical ointments. Its sanitary design avoids cross-contamination, while Triangle Bags or small Sachets meet the compact packaging needs of wellness brands.
Model | BP240L |
Capacity | 30-50 bags/min (final packing speed depends on material characteristic, filling volume, etc) |
Bag Type | 3&4 side seal bag, sachet, stick bag, triangle bag, etc. |
Bag Volume | Max. 116ML |
Bag Size (mm) | W(20-110) * L(50-180) |
Voltage | 220V 1PH 50Hz (can according to customer's request customize) |
Dosing System | Piston pump (equipped by customers' actual requests) |
Power | 3.0KW |
Air Consumption | 0.2m³/min |
Pressure | 0.6Mpa |
Dimension (mm) | L1018XW1327XH1689mm |
Weight | 350kg |
Packing speed (30-50 bags/min) depends on three factors: material viscosity (thick pastes like butter are slower than thin juices), filling volume (larger volumes take more time), and bag type (complex shapes like Triangle Bags require extra sealing steps).
Yes. The standard voltage is 220V 1PH 50Hz, but custom voltage (e.g., 110V for North America, 380V for industrial use) is available to match regional power requirements.
Absolutely. The 304 Stainless Steel Construction has smooth, non-porous surfaces, and key components (e.g., the dosing pump) are detachable. This minimizes sanitation time—critical for businesses switching between allergen-sensitive products (e.g., from peanut butter to jam).
Yes. The machine supports retrofits to the Piston Pump Dosing System or adds a peristaltic pump for ultra-thin liquids (e.g., essential oils). ZEEPACK provides technical support for system upgrades.
