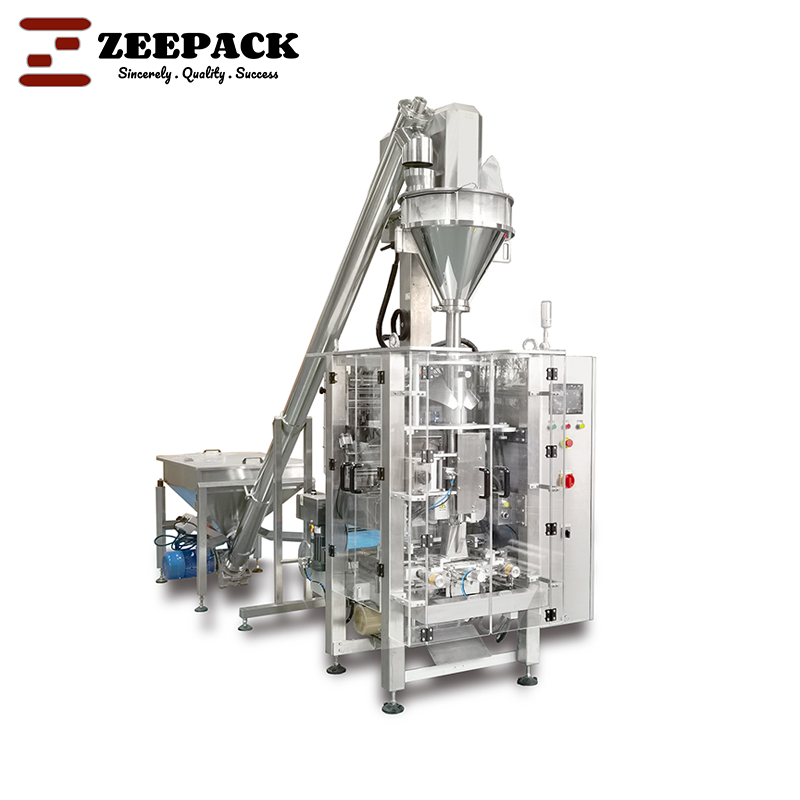

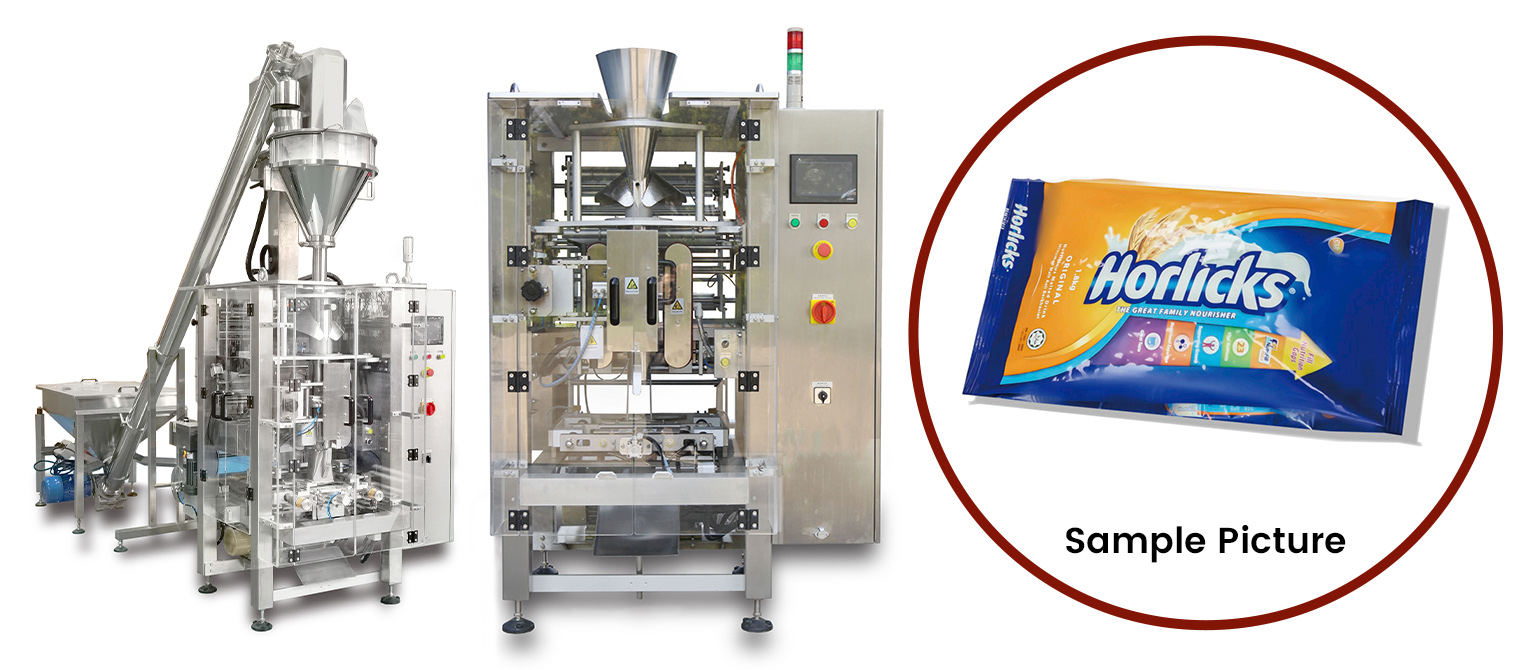

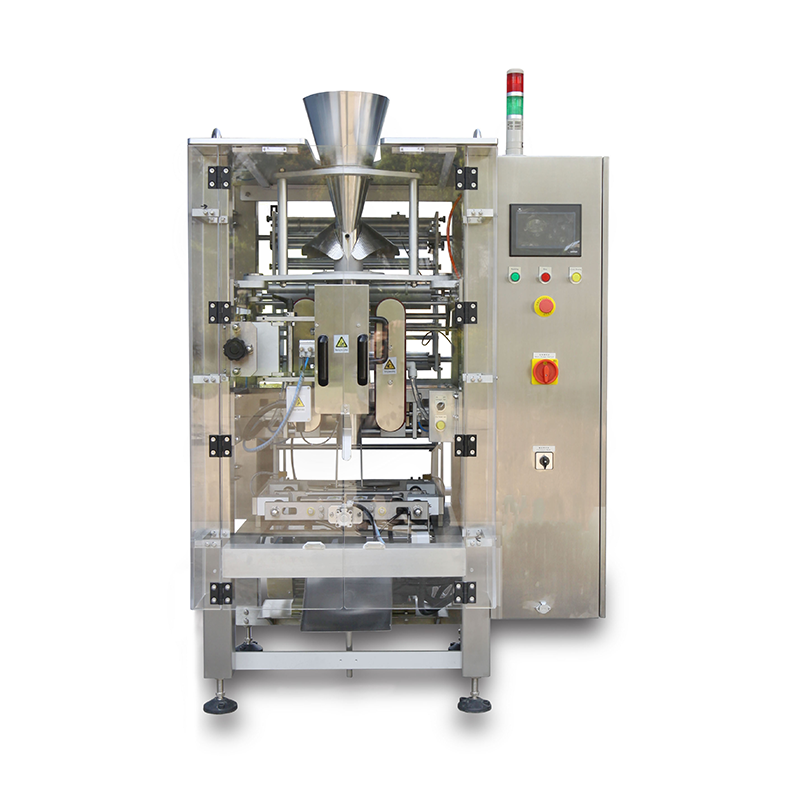

The Powder Vertical Bag Packaging Machine (models: BP480P, BP580P, BP730P) leverages Vertical Form Fill Seal (VFFS) technology to deliver precise, hygienic packaging for powders and fine granules. Designed for both easy-flowing powders (e.g., milk powder) and poor-flowability powders (e.g., flour), it integrates auger filler dosing system for accurate portioning, film forming, filling, sealing, and cutting—all in one vertical unit. With a capacity of 10–50 bags/min (dependent on material and bag size), it supports pillow bags, gusset bags, and quad seal bags, with maximum bag volumes up to 10.0L (BP730P). Crafted with 304 stainless steel, it meets food-grade and pharmaceutical hygiene standards, making it versatile for multiple industries.
Model | BP480P | BP580P | BP730P |
Capacity | 10-50 bags/min (final packing speed depends on material characteristic, filling volume, filling speed, etc) | ||
Bag Type | Pillow bag, gusset bag | ||
Bag Volume | Max.2.7L | Max. 4.5L | Max. 10.0L |
Bag Size | W: 100-230mm L: 100-330mm | W: 100-270mm L: 100-350mm | W: 150-350mm L: 200-500mm |
Voltage | 380V 3PH 50Hz (can according to customer's request customize) | ||
Dosing System | Auger filler, volumetric cup, etc. (customized by customers' requests) | ||
Power | 3.5KW | 4.0KW | 4.5KW |
Air Consumption | 0.24m³/min | 0.28m³/min | 0.32m³/min |
Pressure | 0.6Mpa | 0.6Mpa | 0.6Mpa |
Dimension (mm) | L1128*W1491*H1560 | L1248*W1491*H1680 | L1430*W1702*H1930 |
Weight | 680kg | 780kg | 920kg |
Equipped with servo-driven film transport and continuous motion servo end seals, the machine ensures stable film feeding and consistent sealing. Critical for preventing powder leakage and maintaining package integrity.
The PLC/touchscreen interface offers multilingual support (English, Spanish, Mandarin) and access control. Allowing operators to manage workflows, store recipes, and track production data with ease.
With single-piece formers, it enables quick bag size change. No complex tooling required. Switching between bag sizes (e.g., 100×100mm to 350×500mm) takes under 15 minutes, ideal for batch production.
The photocell printing centering feature aligns printed film with the bag structure, ensuring brand logos and product information are perfectly positioned. Enhancing packaging aesthetics and brand recognition.
Beyond the standard auger filler. It supports volumetric cup dosing (for free-flowing powders) and can be modified for specialized needs (e.g., nitrogen flushing for oxygen-sensitive powders).
Ideal for milk powder packaging, flour packing, and coffee powder filling. Its hygienic design prevents cross-contamination, making it suitable for organic and premium food powders.
Reliable for medical powder packaging (e.g., antibiotic powders) and herbal powder filling. It meets pharmaceutical GMP standards, ensuring product safety and compliance.
Excels in protein powder packaging, nutrition powder filling, and collagen powder packing. The precise auger filler guarantees accurate dosing, aligning with nutritional labeling requirements.
Suitable for glucose packing, yeast filling, and detergent powder packaging. Its robust sealing prevents dust leakage, keeping production environments clean.
It is not recommended for ultra-fine powders (e.g., talc under 500 mesh) that may cause clogging. For such materials, contact us for specialized customized dosing system upgrades.
Packaging speed (10–50 bags/min) depends on material characteristic (flowability), filling volume (e.g., 100g vs. 5kg), and filling speed—free-flowing powders like milk powder typically run at higher speeds.
The BP480P handles up to 2.7L, BP580P up to 4.5L, and BP730P up to 10.0L—suitable for small (100g) to medium (5kg) powder packaging needs.
Yes, we offer nitrogen-filled packaging customization to extend the shelf life of oxygen-sensitive powders (e.g., probiotic powders or instant coffee).
Weekly tasks include cleaning the auger filler and film path; monthly checks of servo-driven film transport components. The machine’s modular design allows easy part replacement without disassembling the entire unit.
