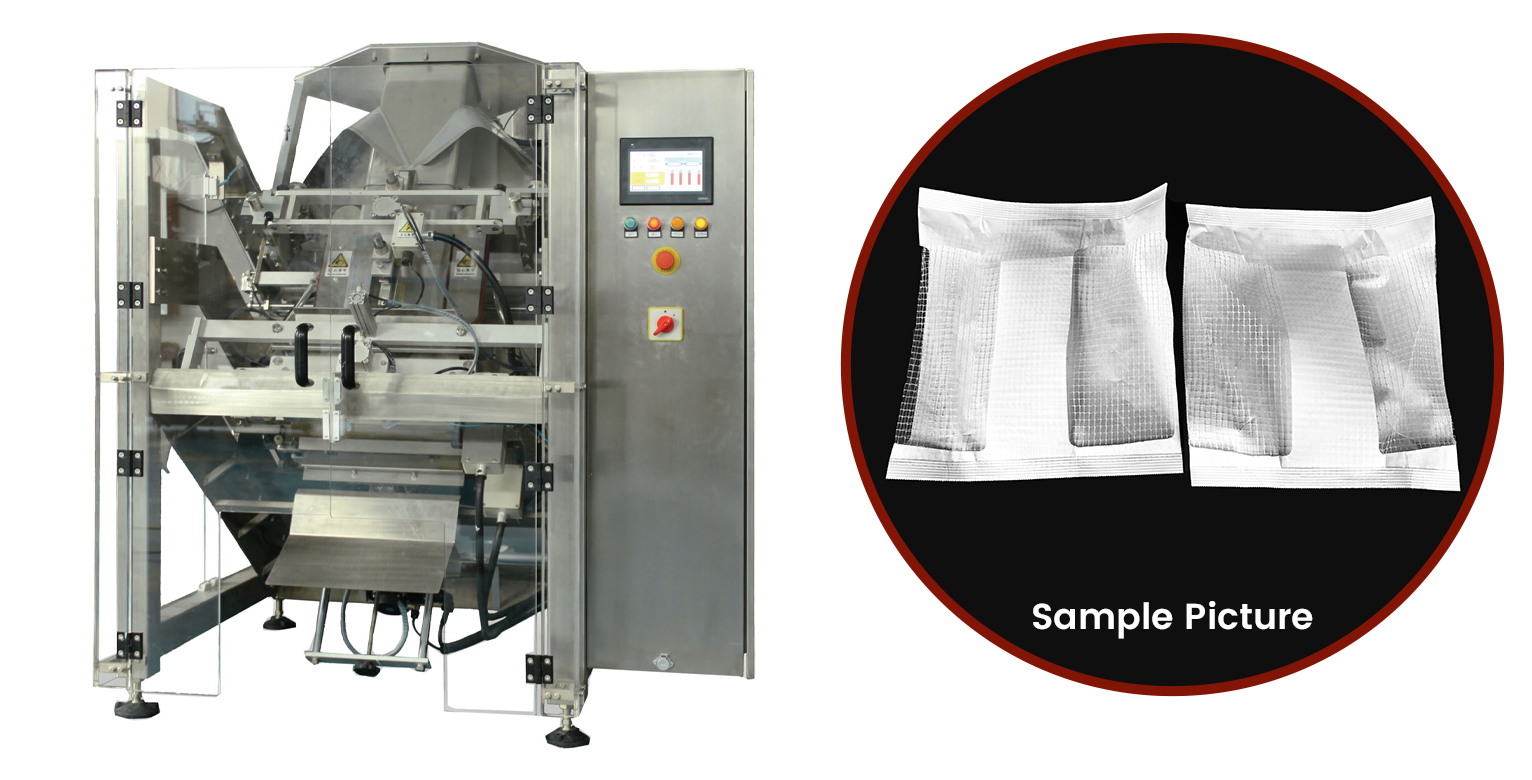

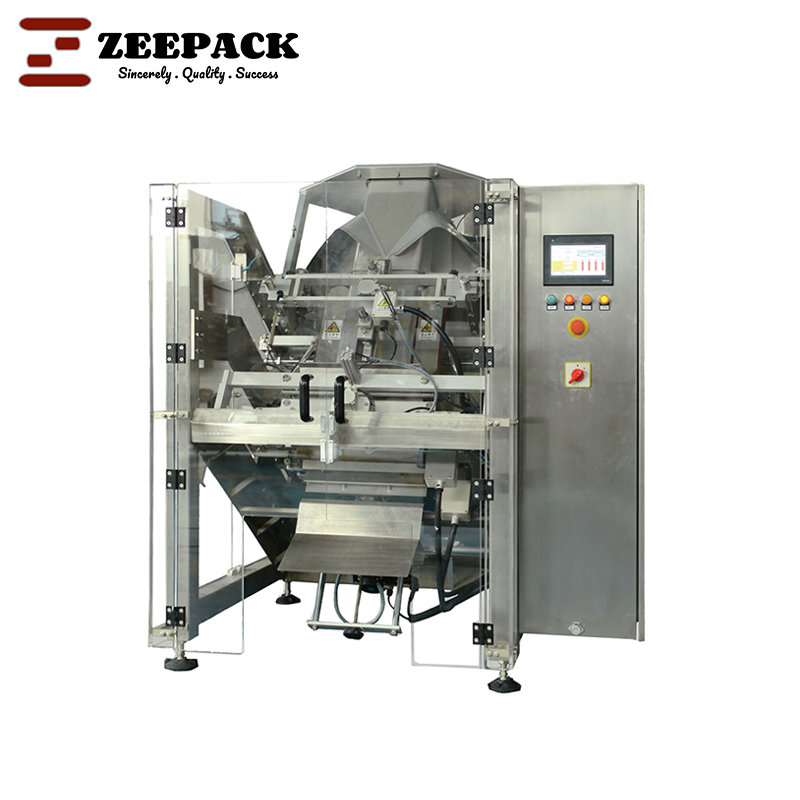

ZEEPACK’s Onion Paper Bag Vertical Inclined Packaging Machine is a state-of-the-art Vertical Form Fill and Seal (VFFS) Machine built to safeguard the safety and integrity of packaged products—with a special focus on onions and other granular/solid items. By integrating cutting-edge intermittent motion technology, this machine delivers flawless, consistent packaging results while offering universal compatibility with diverse filling units (e.g., auger fillers, volumetric cups). Boasting a packaging speed of 30-50 bags/min, it strikes a balance between high productivity and flexibility, easily adapting to different bag styles and sizes. Constructed for both food and non-food sectors, the Onion Paper Bag Vertical Inclined Packaging Machine ensures superior capacity and performance to fuel business growth, backed by durable materials and user-centric features.
Model | BP480P | BP580P | BP730P |
Capacity | 10-50 bags/min (final packing speed depends on material characteristic, filling volume, filling speed, etc) | ||

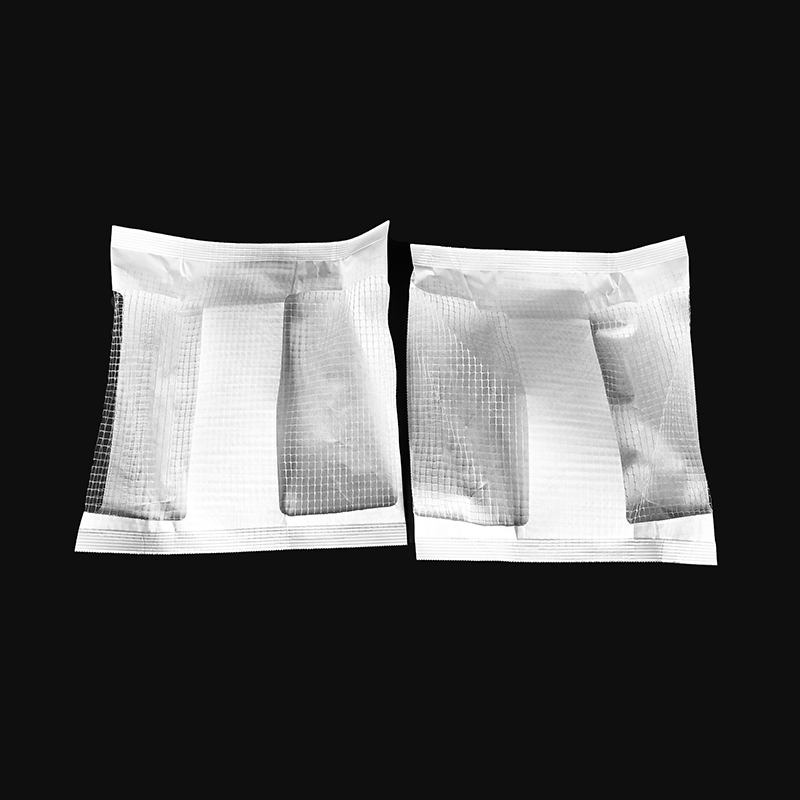

Bag Type | Pillow bag, gusset bag | ||
Bag Volume | Max.2.7L | Max. 4.5L | Max. 10.0L |
Bag Size | W: 100-230mm L: 100-330mm | W: 100-270mm L: 100-350mm | W: 150-350mm L: 200-500mm |
Voltage | 380V 3PH 50Hz (can according to customer's request customize) | ||
Dosing System | Auger filler, volumetric cup, etc. (customized by customers' requests) | ||
Power | 3.5KW | 4.0KW | 4.5KW |
Air Consumption | 0.24m³/min | 0.28m³/min | 0.32m³/min |
Pressure | 0.6Mpa | 0.6Mpa | 0.6Mpa |
Dimension (mm) | L1128*W1491*H1560 | L1248*W1491*H1680 | L1430*W1702*H1930 |
Weight | 680kg | 780kg | 920kg |
The machine is equipped with servo-driven film control and continuous motion seals, guaranteeing high-speed packaging without sacrificing accuracy. This is critical for preventing product spillage and ensuring uniform bag formation—even for delicate items like fresh onions.
A user-friendly, multilingual PLC/touchscreen interface comes with secure access levels, streamlining machine management for operators of all skill levels. This feature cuts down training time and minimizes operational errors.
It supports multiple bag styles, including pillow bags and gusset bags, making it suitable for various packaging needs—from small onion portions to bulk packs. The design eliminates the hassle of switching between specialized machines for different bag types.
A built-in photocell enables automatic print centering, ensuring brand logos, product details, and labels are perfectly aligned on every bag. This enhances brand visibility and maintains a professional look across all packages.
Crafted from high-grade stainless steel, the machine meets strict sanitation standards. It resists corrosion, simplifies cleaning, and is ideal for food applications (like onion packaging) where hygiene is non-negotiable.
Single-piece formers enable fast bag size changeover, allowing operators to switch between sizes (e.g., W100-350mm, L100-500mm across models) in minutes. Minimizing downtime and maximizing productivity.
Users can select tailored dosing systems (auger filler, volumetric cup, etc.) based on product characteristics. This ensures precise filling for items ranging from small onion granules to larger solid products.
The machine excels at packaging onions, mixed nuts, chocolate beans, and cereal. Its gentle handling prevents product damage, while the hygienic design complies with global food safety regulations (e.g., FDA, EU 10/2011).
It is capable of packaging frozen foods (e.g., frozen onions, diced vegetables). The robust construction withstands low-temperature environments without compromising performance or durability.
Beyond food, it works for non-food items like small hardware parts or pet accessories. Leveraging its versatile dosing and bagging capabilities to meet diverse industry needs.
It primarily supports pillow bags and gusset bags, but can also be adapted for other heat-sealable bag materials (e.g., laminates) based on specific packaging requirements.
Yes. The standard voltage is 380V 3PH 50Hz, but ZEEPACK offers voltage customization (e.g., 220V for North American markets) to match regional electrical standards.
Volume varies by model: BP480P (max 2.7L), BP580P (max 4.5L), and BP730P (max 10.0L). This range covers small retail packs to large bulk packages for onions.
Yes, its stainless steel construction resists moisture, making it safe for packaging slightly wet items (e.g., fresh, washed onions) without rust or performance issues.
