Application ▼

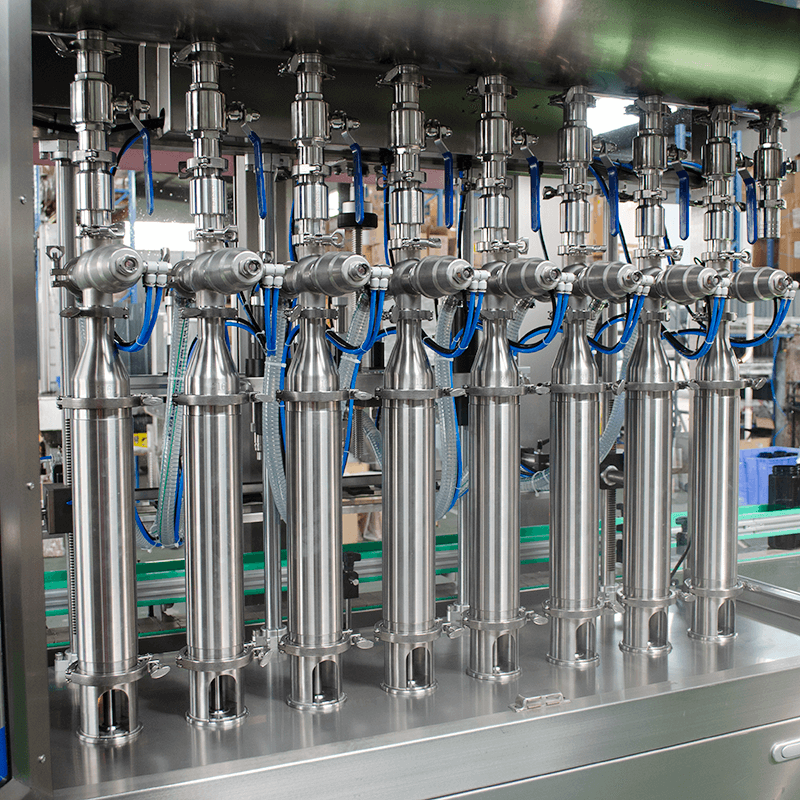

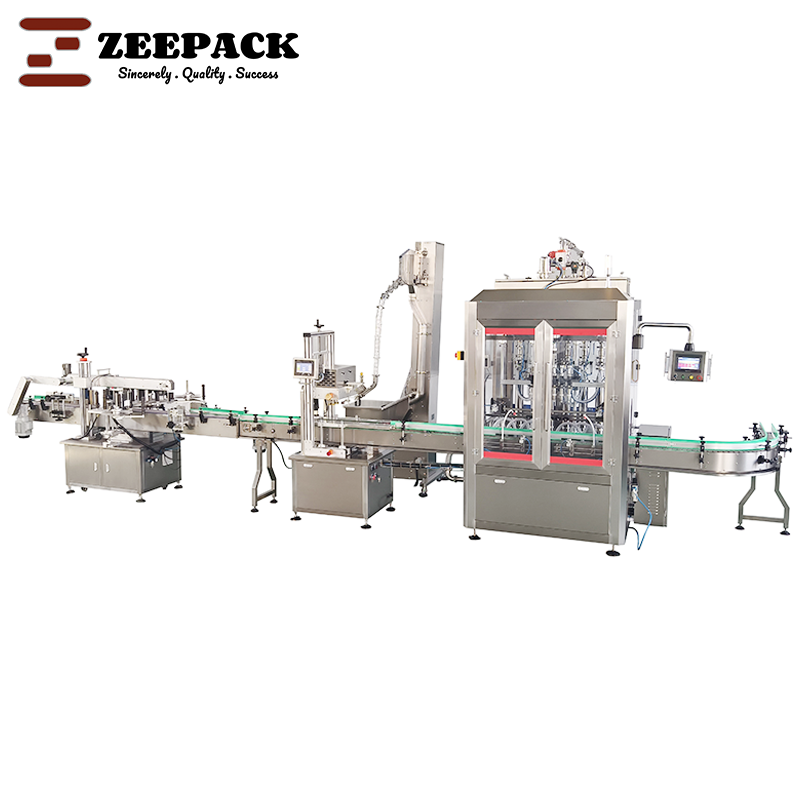

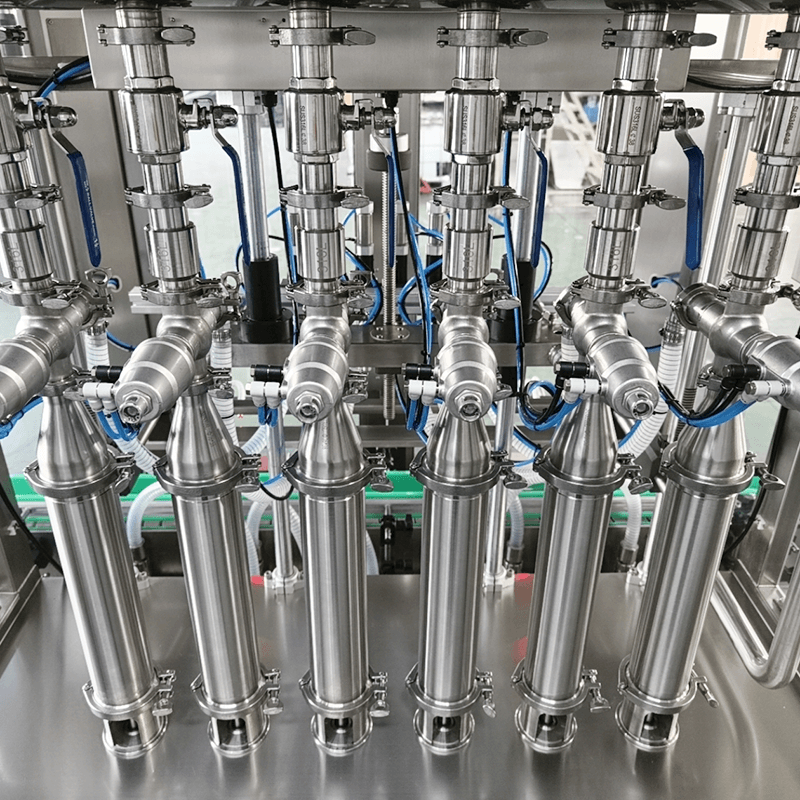

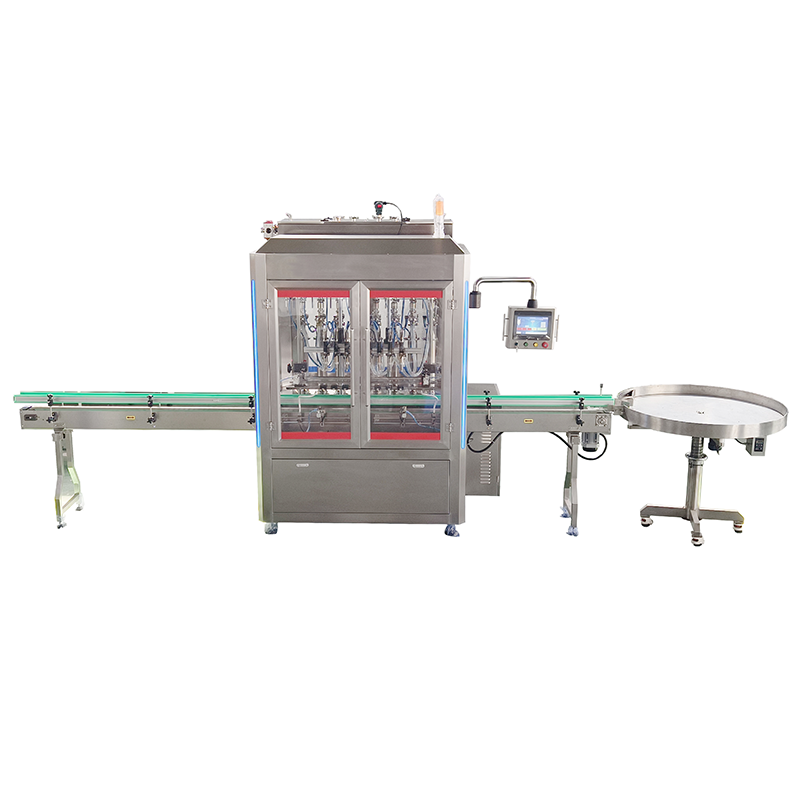

Mutli-head liquid&paste jar filling line with servo piston pump, offering hygienic design, precise filling, easy size changeover, compact footprint, premium appearance, and stable performance.
Feature ▼
1. Easy adjust for various filling volume
2. Easy adjust for various bottle shape and size
3. No bottle, No Fill, No leak after fill
4. Easy Dismantle and Clean

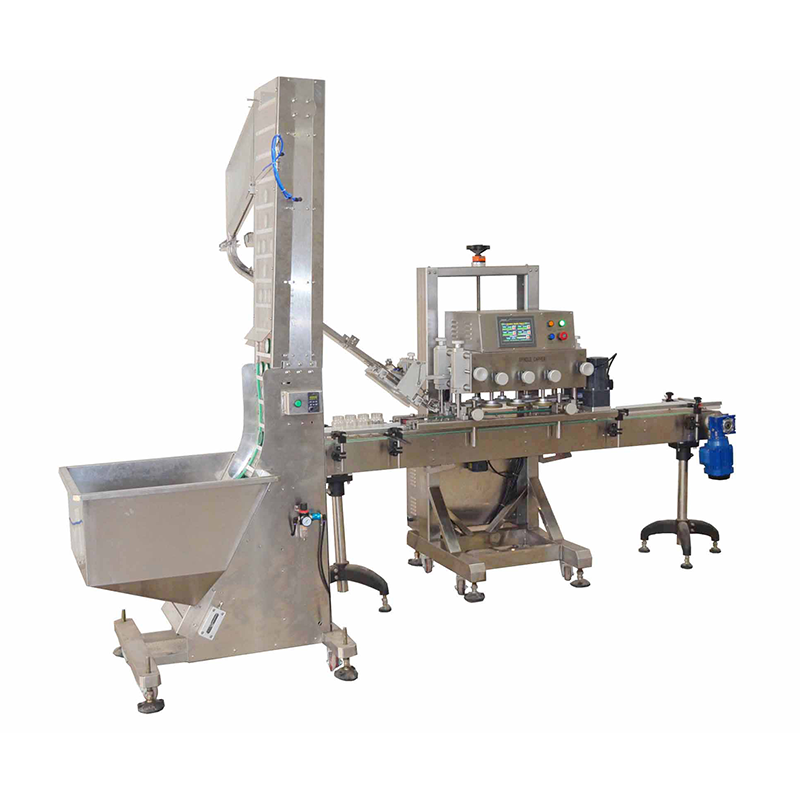

5. Easy adjust for various cap shape and size
6. PLC Control, Touch Screen Operation
Technical Parameters ▼
Model | PF-4 | PF-6 | PF-8 | PF-10 | PF-12 |
Fill Way | Piston Filler | ||||
Products Filled | Liquid and Paste | ||||
Fill Speed | 40Fills/minute | 60 Fills/minute | 90 Fills/minute | 100 Fills/minute | 120 Fills/minute |
Containers Filled | Bottles, Jars, Can, Tin etc | ||||
Container Size | D:60-200mm, H:80-270mm | ||||
Fill Range | 5~60ml 10~120ml 25~250ml 60~500ml 100~1000ml 200~2500ml 400~5000ml | ||||
Fill Accuracy | ±1% | ||||
Hopper Capacity | 100L | 140L | 180L | 220L | 260L |
Special Features | Jacket Hopper, Moveable Nozzle Protect Foam, Pneumatic Suction Protect Leak | ||||
Voltage | Single Phase, 220V, 50/60HZ | ||||
Power | 450W | 550W | 850W | 900W | 1100W |
Air Consumption | 0.2M3/MIN | 0.3M3/MIN | 0.4M3/MIN | 0.5M3/MIN | 0.6M3/MIN |
Dimension | 1128*1060*2105 | 1428*1060*2105 | 1700*1060*2105 | 2000*1060*2105 | 2200*1060*2105 |
Weight | 350KG | 420KG | 500KG | 560KG | 610KG |
