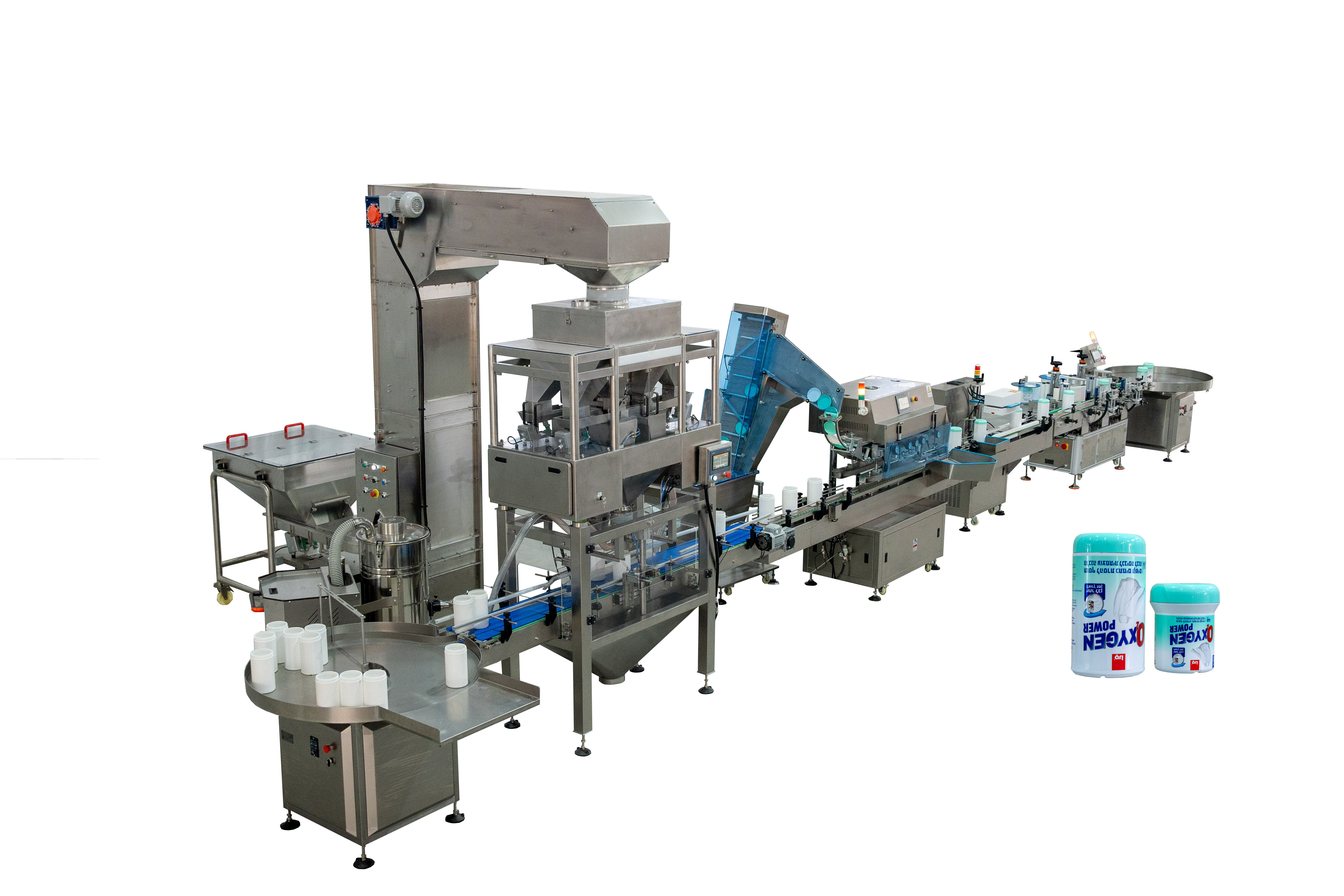

DLF-2 detergent powder jar filling capping labeling line is an automated mixed powder packaging solution designed exclusively for the efficient and contamination-free filling of powder products into bottles, cans, tin cans and small containers.
The core is a linear weighing filler customized with German Mettler-Toledo load cells, designed for free-flowing powders, granules, and mixed granular materials, achieving 20–40 fills per minute with high accuracy.
This complete production line integrates with powder mixers, powder filling,capping systems, labeling equipment and coding devices to form a seamless workflow.
-Integrates three processes into one line, reducing floor space and eliminating manual transfer. Speed: 20–40 jars/min.
-Engineered for dusty environments—sealed filling head and dust collection ensure a clean working area and prevent cross-contamination.
-PLC with color touchscreen; operators can save recipes (e.g., “1kg Can”) for quick changeover, minimizing downtime.
-Heavy-duty SUS304 stainless steel construction: corrosion-resistant, easy to clean, and GMP compliant.
-Modular design allows independent operation of filling, capping, and labeling sections for maintenance or troubleshooting.
-Designed for laundry powder, but also handles other free-flowing powders (e.g., baking soda, scouring powder, powdered detergents) with minimal changeover parts.
Model | DLF-2 |
Dosing System | Linear weigher (according to customer’s capacity equip the number of heads weigher) |
Products Filled | Good free flowing powder or easy to layer powder,mixed granules,etc. |
Fill Speed | 20-40 Fills/minute |
Containers Filled | Bottles, Jars, Can, Tin etc |
Container Size | D:60-210mm, H:80-290mm |
Fill Accuracy | ±1-2% (depends on product characteristic) |
Fill Range | 100-5000g(can according to customer’s request customize) |
Hopper Capacity | 200L,4unit |
Capping type | Screw capping, flip-top, child-resistant |
Voltage | Single Phase, 220V,50/60HZ |
Power Consumption | 2.0KW |
Dimension (mm) | 2900×700×2600mm |
Net Weight | 650KG |
It’s ok for customize to fill 100g-5000g.
No,in addition to being suitable for filling good free flowing and easy to dust flying powders, it is also highly suitable for filling easy to layer powders, as well as small granular products mixed with various substances, such as mixed nuts, mixed candies, and so on.
An enclosed powder pathway and built-in dust collector capture airborne particles, eliminating dusting, protecting workers, and reducing waste.
Works with bottles, jars, cans, and tins (diameter 60–210 mm, height 80–290 mm). The adjustable filling nozzle enables fast changeovers.
Normally,Cleaning time typically ranges from 15 to 30 minutes. Features such as tool-free disassembly, open-frame structure, and food-grade surfaces allow quick access to all contact parts. For sticky or fine powders, additional time may be needed to ensure thorough residue removal.
