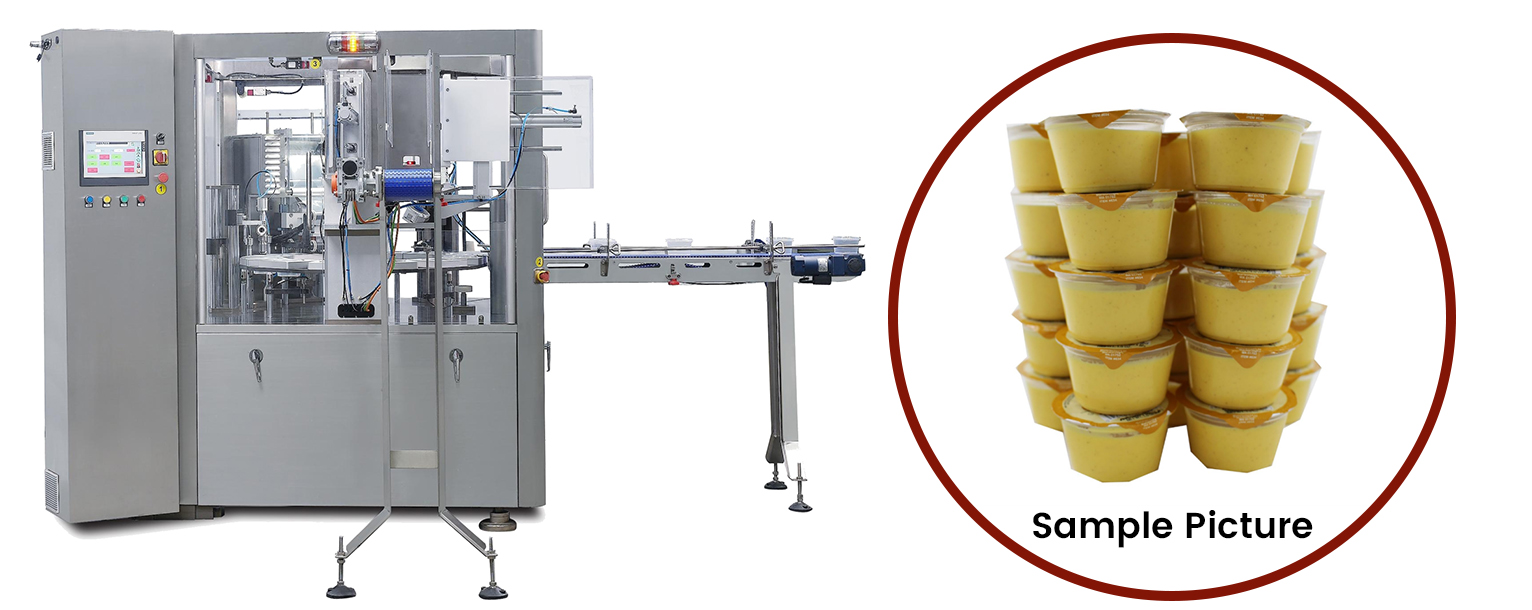

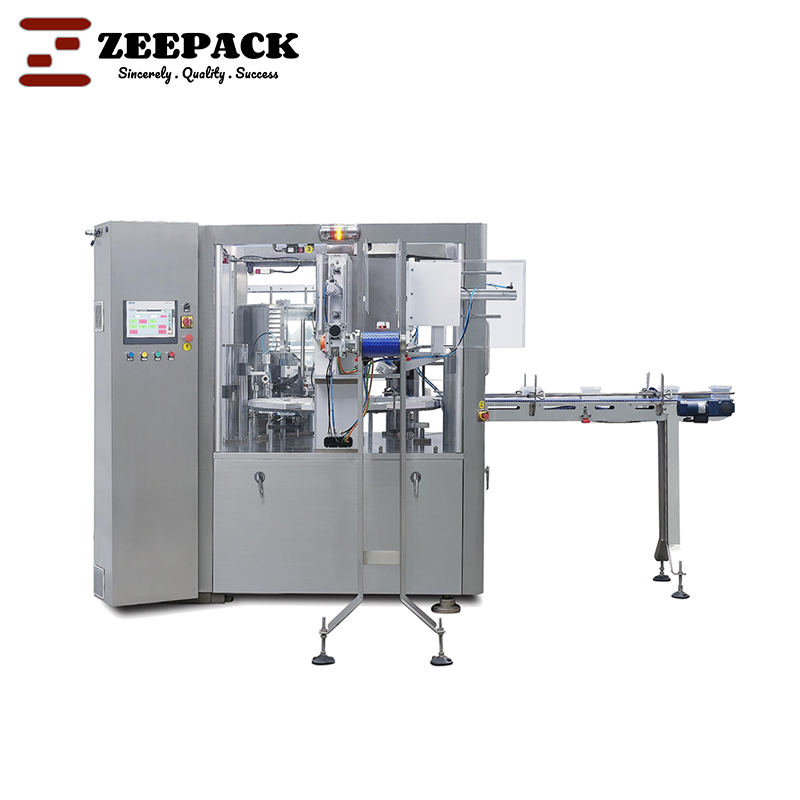

The Paste Cup Fill Seal Machine is a high-performance packaging solution designed for precise filling and sealing of liquid, viscous, and paste-like products into cups, tubs, trays, or boxes. Engineered by ZEEPACK, this machine features a piston pump dosing system that ensures accurate volume control—critical for products like sauces, shampoos, and CBD oils. Its core advantages include quick size changes (via interchangeable parts), stable operation, and space-saving design, making it suitable for food, daily chemical, and pharmaceutical industries. The standard model (RPC-60L) delivers 20–40 cups per minute, with fully customizable options to match high-volume or specialty production needs.

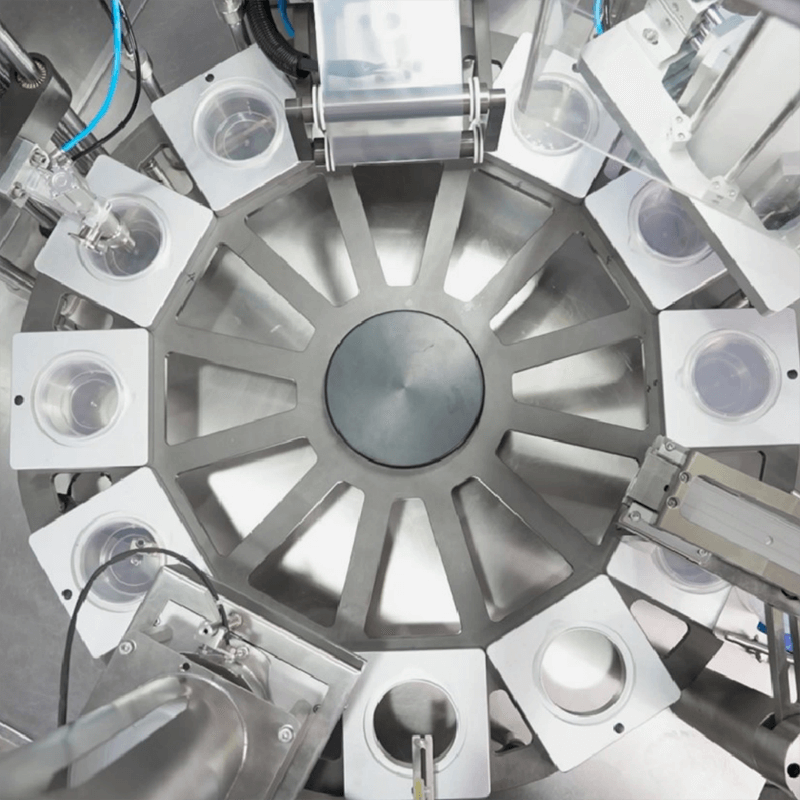

A servo-assisted all-mechanical drive ensures stable, continuous operation—eliminating fluctuations in filling volume or sealing pressure. The high-precision indexing box guarantees accurate container positioning, reducing product waste and improving packaging quality. The piston pump dosing system (adjustable based on material viscosity) handles thin liquids (e.g., juice) and thick pastes (e.g., mayonnaise) equally well, with filling accuracy up to ±1%.
Quick-change parts (e.g., filling nozzles, cup holders) allow operators to switch between different container sizes (round: D150mm×H180mm; square: L150mm×W150mm×H180mm) in 15–20 minutes—no complex tools required. This flexibility makes the machine ideal for small-batch production (e.g., artisanal salad dressings) or large-scale runs (e.g., commercial shampoo tubs).

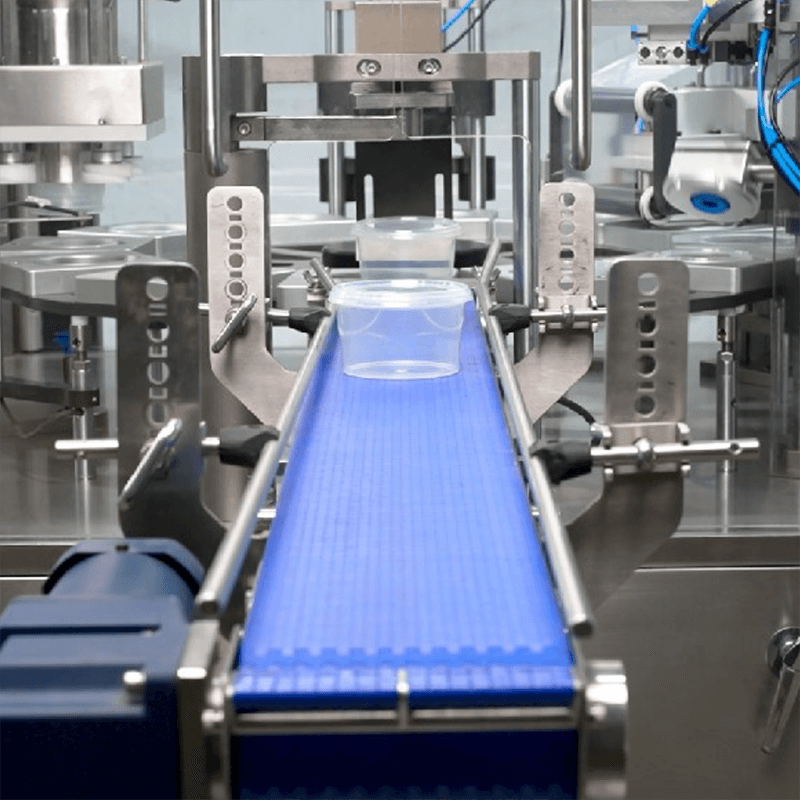

With compact dimensions (L3300×W3000×H2010mm), the machine fits into tight production spaces—critical for urban factories or facilities with limited floor area. The same-side cup/cover feeding design reduces labor needs: one operator can manage cup loading, cover placement, and machine monitoring, cutting staffing costs by up to 50% compared to manual packaging.

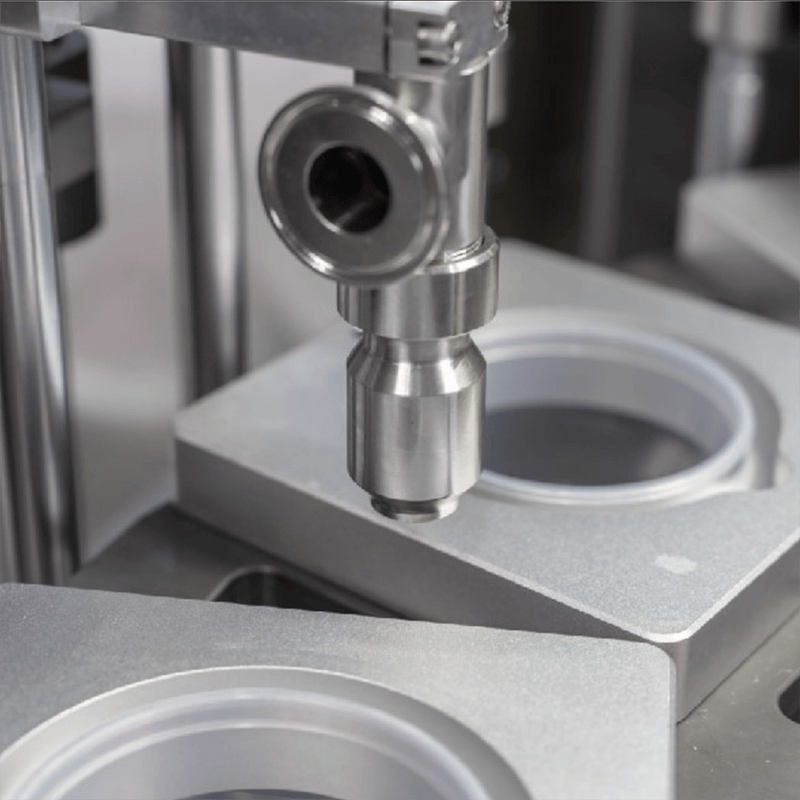

All food-contact parts (e.g., filling nozzles, piston pumps) are made of 304 SS or food-grade plastic, resisting corrosion and chemical damage (e.g., from acidic sauces or detergent liquids). The machine’s smooth surfaces and minimal crevices simplify cleaning—complying with FDA and GMP standards for food and pharmaceutical packaging.
Model | RPC-60L |
Production Capacity | 20-40 cups/minute (depends on material characteristic, filling volume, etc) |
Dosing system | Piston pump (Base on material characteristic) |
Packaging Container | Cups, Tub, Tray, Box, etc |
Maximum Container Size | Round container: D150mm*H180mm Square container: L150mm*W150mm*H180mm |
Voltage | 380V 3PH 60HZ (can according to customer request's customize) |
Power Consumption | 3KW |
Air Consumption | 0.3M³/minute |
Pressure | 0.2Mpa |

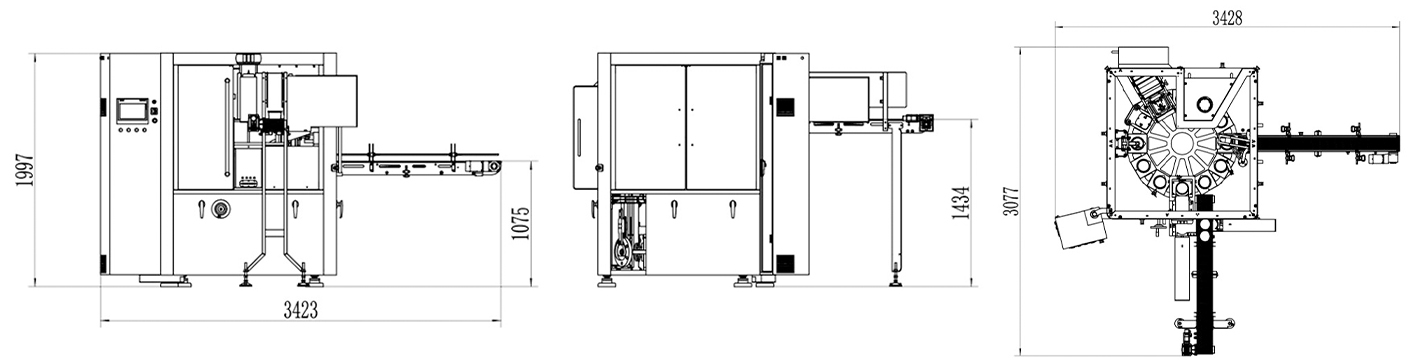

Machine Dimensions | L3300*W3000*H2010mm |
Weight | 2800kg |
Perfect for packaging condiments (e.g., KENS Tartar Sauce, honey mustard, soy sauce), dairy products (e.g., butter, cream), and sweet treats (e.g., chocolate sauce, honey). The piston pump’s accuracy ensures consistent portion sizes, while the airtight seal preserves freshness and extends shelf life.
Suitable for filling personal care products (e.g., shampoo, shower gel) and household cleaners (e.g., liquid detergent, paste-like stain removers). The machine’s chemical-resistant parts handle harsh ingredients without degradation, ensuring product purity.
Ideal for packaging CBD oil, herbal ointments, or liquid supplements. The precise dosing system meets pharmaceutical standards for dosage accuracy, while the airtight seal prevents contamination—critical for products requiring strict quality control.
The standard maximum size is round containers (D150mm×H180mm) and square containers (L150mm×W150mm×H180mm). For larger or custom-shaped containers (e.g., oval tubs), we offer tailored modifications to the cup holder and sealing mechanism.
The piston pump’s speed and stroke length are adjustable via the control panel. For thin liquids (e.g., juice), we use a faster pump speed and shorter stroke; for thick pastes (e.g., mayonnaise), we slow the pump and increase stroke length to ensure smooth filling without air bubbles.
The machine uses 3KW of power (standard 380V 3PH 60Hz, customizable to regional standards) and requires 0.3m³/min of compressed air at 0.2Mpa. We recommend pairing it with a high-quality air compressor to maintain stable pressure during operation.
Yes. We provide a 12-month warranty on all mechanical parts (e.g., servo motors, piston pumps) and a 6-month warranty on wear items (e.g., sealing gaskets). Our after-sales team also offers on-site maintenance and training to ensure optimal machine performance.
