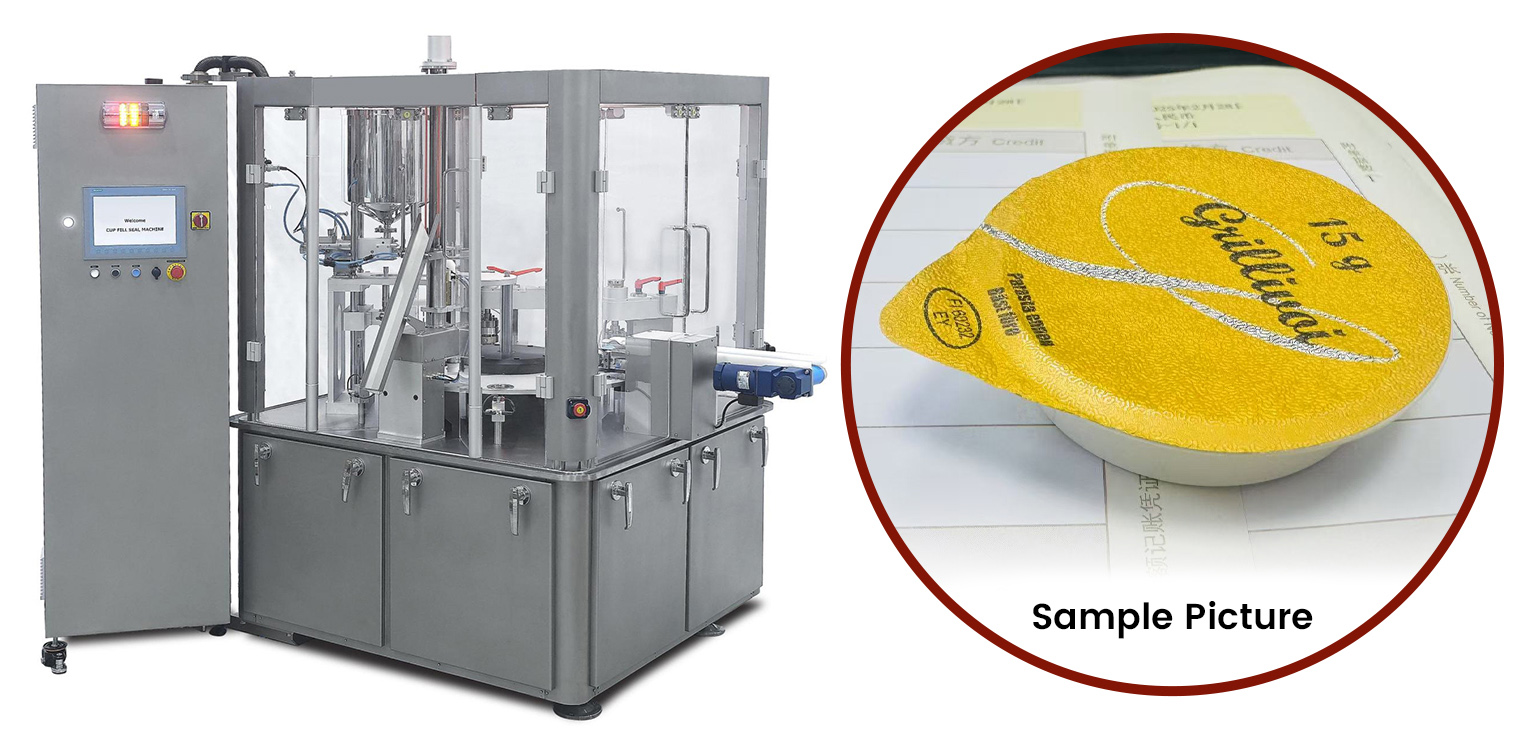

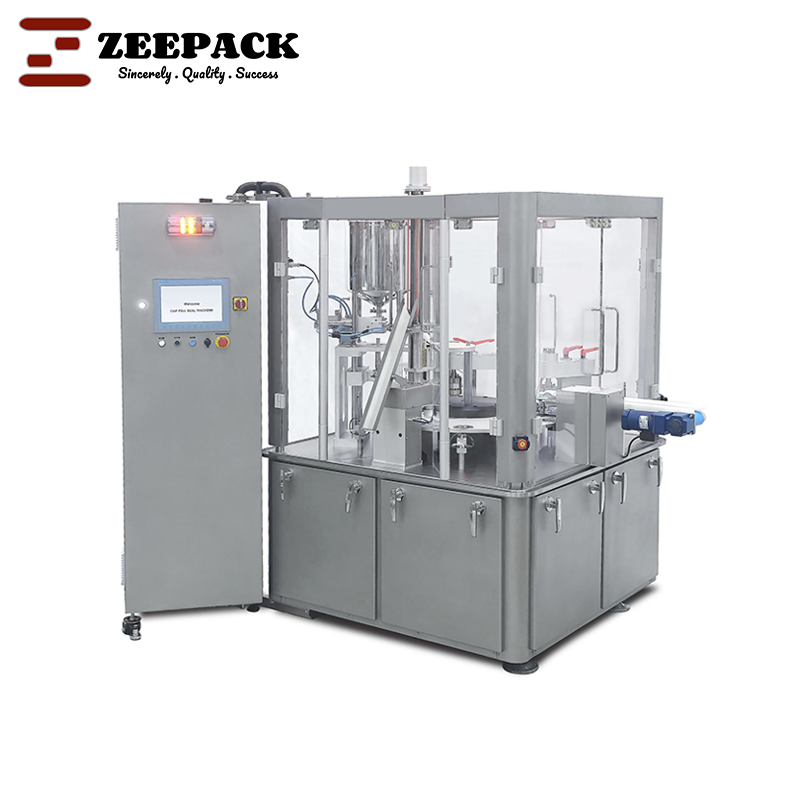

The Sauce/Dressing Small Cup Fill Seal Machine (Model: RPC-80L) is a high-performance packaging solution designed for fast, precise handling of liquid and viscous paste products. Integrating a piston pump dosing system (customizable by material characteristics), this machine ensures consistent filling and reliable sealing for small cups, tubs, trays, and boxes—making it ideal for the food, daily chemical, and pharmaceutical industries. With a production capacity of 40-60 cups/minute (adjustable based on material viscosity and filling volume) and quick-change parts for cup size adaptation, it balances efficiency and flexibility, reducing downtime and boosting overall productivity. Its compact design and servo-assisted drive further enhance operational stability, meeting the demands of both large-scale production lines and medium-sized workshops.
Model | RPC-80L |
Production Capacity | 40-60 cups/minute (depends on material characteristic, filling volume, etc) |

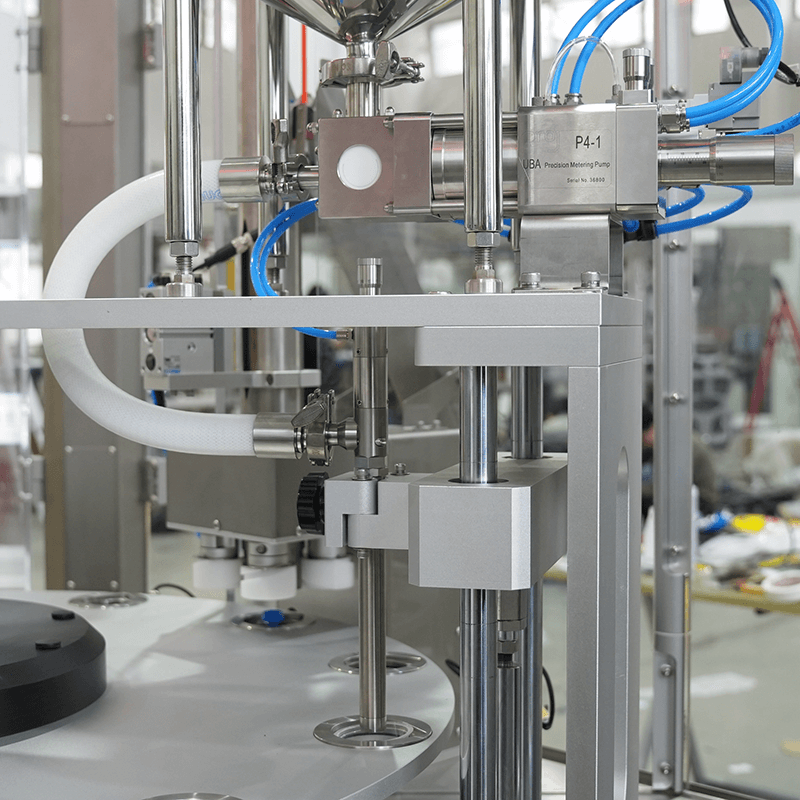

Dosing System | Piston pump (Base on material characteristic) |
Packaging Container | Cups, Tub, Tray, Box, etc |
Maximum Container Size | Round container: D150mm*H180mm Square container: L150mm*W150mm*H180mm |
Voltage | 380V 3PH 60HZ (can according to customer request's customize) |
Power Consumption | 10KW |
Air Consumption | 0.3M³/minute |
Pressure | 0.6Mpa |
Machine Dimensions | L1540*W1540*H2000mm |
Weight | 2800kg |
Equipped with an all-mechanical drive powered by servo technology, the RPC-80L maintains continuous, stable operation even during long production runs. This design eliminates fluctuations in filling and sealing speed, ensuring consistent output of up to 60 cups per minute—critical for high-volume products like salad dressing or soy sauce.
A high-precision indexing box guarantees precise alignment of cups, lids, and filling nozzles. This minimizes material waste (e.g., overflow of viscous pastes like mayonnaise) and improves sealing quality, reducing the risk of leakage or spoilage—essential for food safety compliance.
With dimensions of L1540W1540H2000mm, the machine features an efficient layout that optimizes floor space. Unlike bulkier packaging equipment, it can be easily integrated into existing production lines without requiring major facility modifications, ideal for workshops with limited space.
The innovative same-side feeding design for cups and lids reduces the need for multiple operators. A single worker can monitor cup loading and lid replenishment, cutting labor costs by up to 30% compared to traditional machines with separate feeding stations.
The RPC-80L excels at packaging liquid and viscous paste products, including:

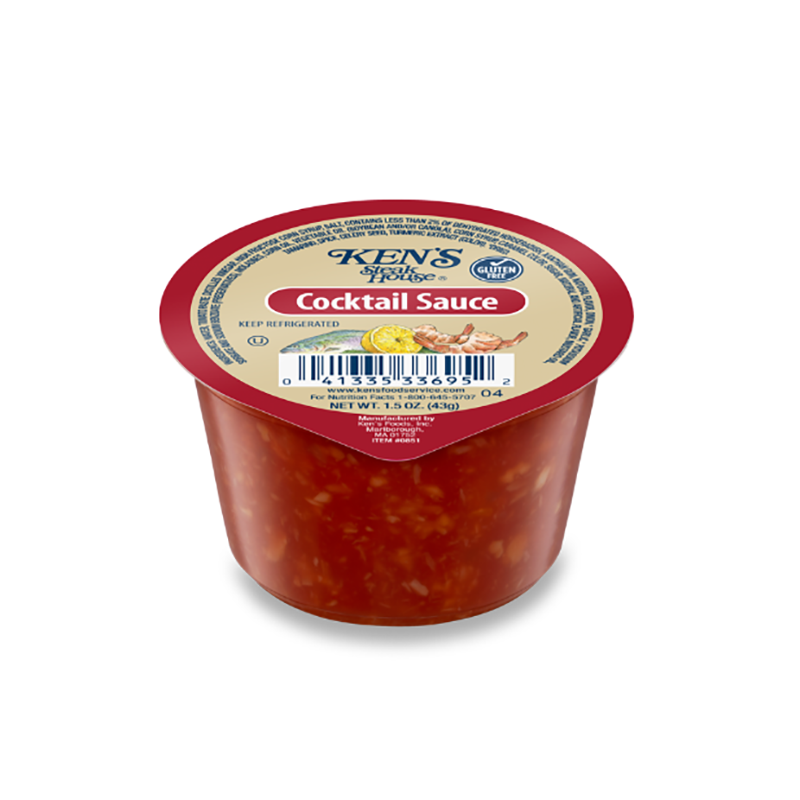

Food: Sauce (cocktail sauce, chocolate sauce), salad dressing, mayonnaise, honey, butter, yogurt.
Daily Chemicals: Shampoo, shower gel, detergent paste.
Pharmaceuticals: CBD oil, oral liquids (in small cups).
It supports multiple container types and sizes, such as:
Round cups (max. D150mm*H180mm)
Square tubs (max. L150mm*W150mm*H180mm)
Trays and small boxes (customizable for specific product needs).
Primary industries benefiting from this machine include food processing (e.g., small-batch sauce manufacturers), cosmetic/daily chemical plants (travel-size toiletries), and pharmaceutical facilities (single-dose liquid packaging).
The machine adapts to filling volumes based on container size (up to 180mm height for round/square cups). For example, it can fill 30g small sauce cups (common for fast-food condiments) or 200g yogurt tubs, with the piston pump adjusted to match material density.
Yes. The standard voltage is 380V 3PH 60HZ, but it can be modified to 220V (single-phase) or 440V (3PH) to meet regional electrical standards (e.g., 220V for European markets), ensuring global usability.
With quick-change parts (e.g., mold inserts, filling nozzles), switching between cup sizes takes 15-20 minutes—no specialized tools required. This is ideal for businesses producing multiple products (e.g., both 50g honey cups and 100g salad dressing tubs).
Yes. Key contact parts (e.g., hopper, piston pump, sealing plates) are made of food-grade stainless steel, which is corrosion-resistant and easy to sanitize. This meets FDA and EU food safety standards, suitable for dairy or sauce products requiring strict hygiene.
