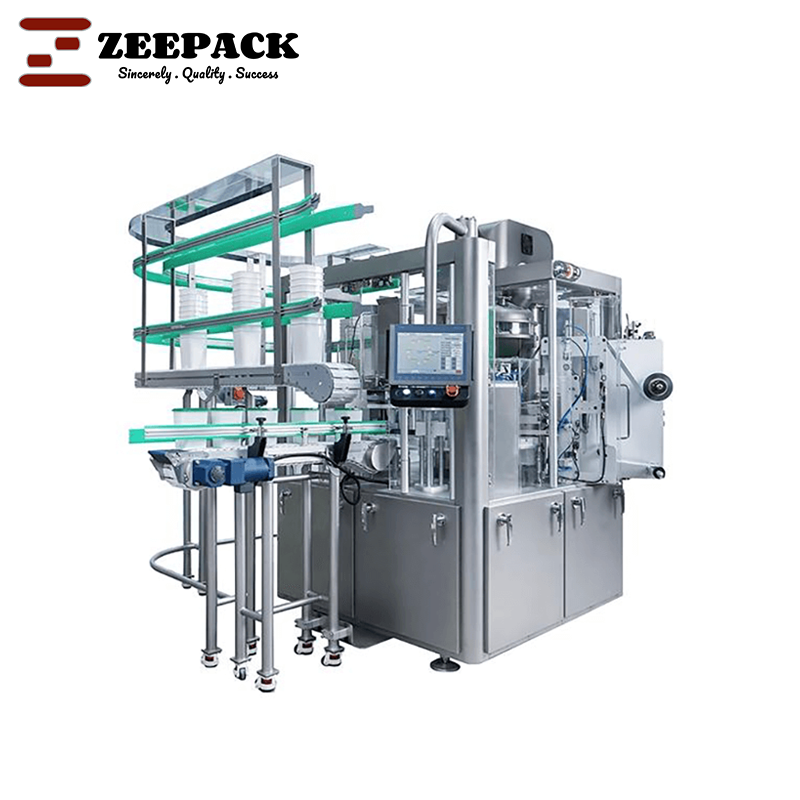

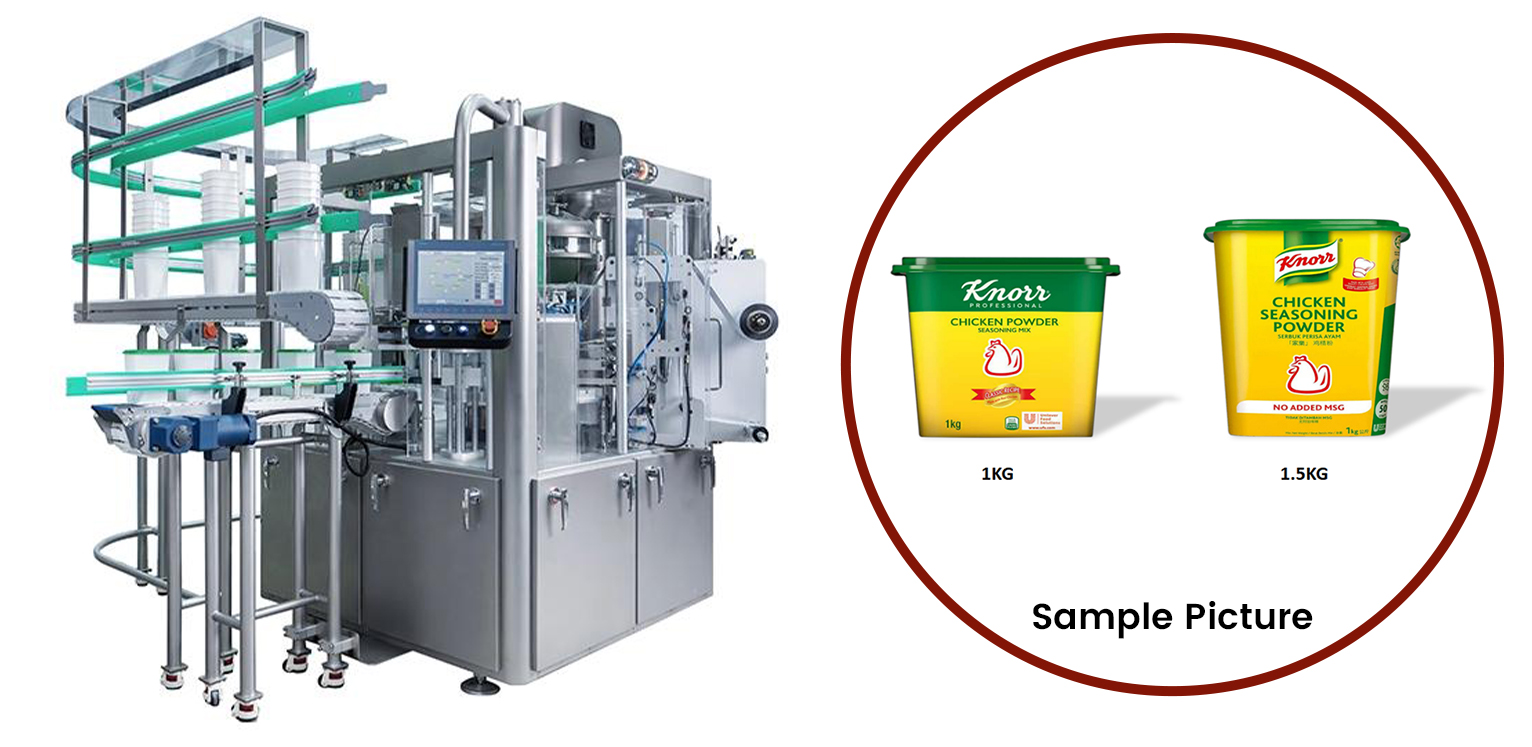

The Powder Tub Fill Seal Lid Closing Machine is a professional automated packaging solution designed to streamline the filling, sealing, and lid-closing process for powder and fine granule products. It integrates a high-performance auger filler dosing system to handle both free-flowing and poor-flowability materials, solving the pain points of inconsistent filling accuracy and slow size changeover in traditional packaging lines. With a production capacity of 10-50 tubs/min (adjustable based on material and container size), this machine is widely used in food, daily chemical, and pharmaceutical industries—delivering stable operation and flexible adaptability to meet diverse packaging needs. Whether you’re packaging 1kg chicken powder or 1.5kg milk powder, its quick disassembly design allows fast switching between different tub sizes, significantly reducing downtime and boosting overall production efficiency.
Model | RPC-60P |
Production Capacity | 20-40 cups/minute (depends on material characteristic, filling volume, etc) |
Dosing system | Auger filler, linear weigher, volumetric cup filler, etc. (Base on material characteristic) |
Packaging Container | Cups, Tub, Tray, Box, etc |
Maximum Container Size | Round container: D150mm*H180mm Square container: L150mm*W150mm*H180mm |
Voltage | 380V 3PH 60HZ (can according to customer request's customize) |
Power Consumption | 10KW |
Air Consumption | 0.3M³/minute |
Pressure | 0.6Mpa |
Machine Dimensions | L1540*W1540*H2000mm |
Weight | 2800kg |
Equipped with a servo-assisted all-mechanical drive system, the machine ensures continuous high-productivity operation without frequent breakdowns. This design minimizes idle time, making it ideal for high-volume production scenarios (e.g., 20-40 cups/min for standard configurations like the RPC-60P model).
The built-in high-precision indexing box enables accurate container positioning during filling and sealing, reducing material waste and ensuring uniform packaging quality. This is critical for sensitive products like medicine powder and nutrition powder, where filling accuracy directly impacts product safety.
With an optimized layout (machine dimensions: L1540*W1540*H2000mm), the Powder Tub Fill Seal Lid Closing Machine saves valuable factory space compared to bulky traditional packaging lines. It fits seamlessly into existing production workflows without requiring major layout adjustments.

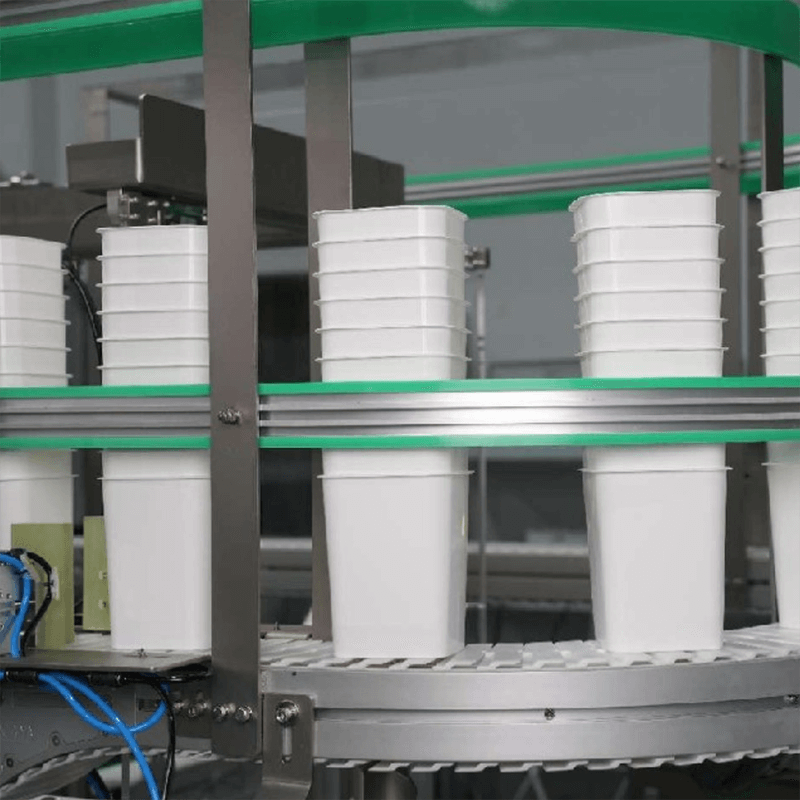

By integrating same-side cup/cover feeding, the machine eliminates the need for multiple operators to handle container and lid supply separately. This cuts labor costs by 30-50% while reducing human error (e.g., misplaced lids or uneven filling).

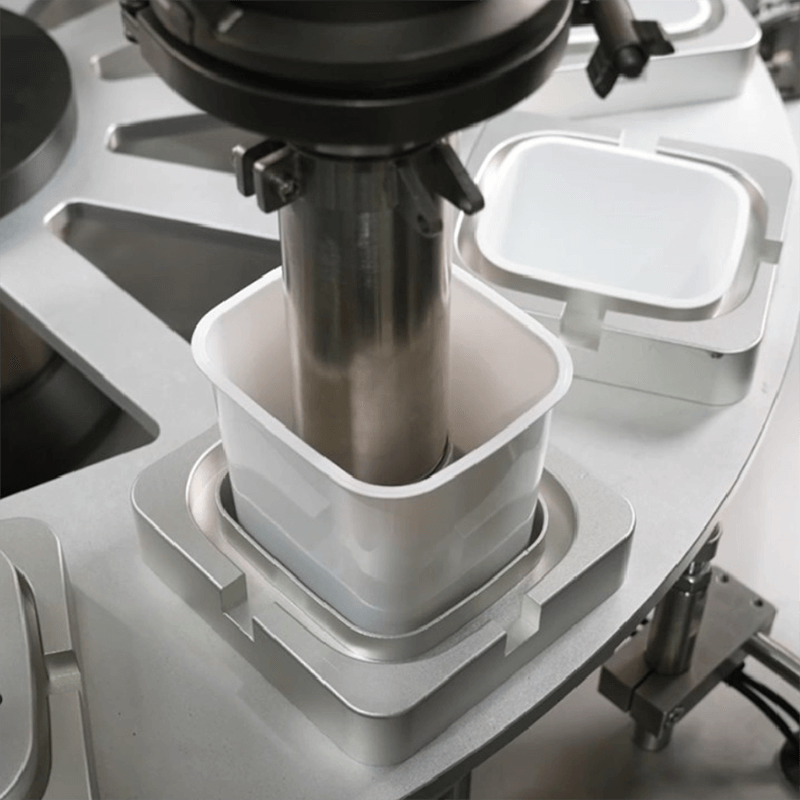

The machine supports multiple dosing system options—including auger filler (for powders), linear weigher (for granulars), and volumetric cup filler—tailored to different material characteristics. For example, the auger filler is perfect for coffee powder and yeast, while the linear weigher suits coarse spices.
The Powder Tub Fill Seal Lid Closing Machine is versatile for packaging products across industries:
Food Industry: Ideal for chicken powder, milk powder, coffee powder, spice powder, flour, and protein powder (supports "NO ADDED MSG" or organic product packaging).
Pharmaceutical Industry: Suitable for medicine powder, glucose, and health powder (meets hygiene standards for medical-grade packaging).
Daily Chemical Industry: Handles detergent powder and cosmetic powder (compatible with non-toxic, corrosion-resistant materials).
It supports containers like cups, tubs, trays, and boxes. The maximum size for round containers is D150mmH180mm, and for square containers is L150mmW150mm*H180mm—suitable for most standard retail packaging sizes (e.g., 1kg-1.5kg tubs).
Yes. The machine offers customizable dosing systems (auger filler, linear weigher, volumetric cup filler). For example, the auger filler is optimized for poor-flowability powders (e.g., nutrition powder), while the linear weigher ensures accuracy for free-flowing glucose.
Absolutely. The standard voltage is 380V 3PH 60HZ, but it can be fully customized to match regional requirements (e.g., 220V 1PH for small factories or international markets).
Thanks to the quick disassembly design, changing tub sizes takes only 10-15 minutes—no complex tools required. This is far faster than traditional machines (which often take 1-2 hours), reducing production downtime.

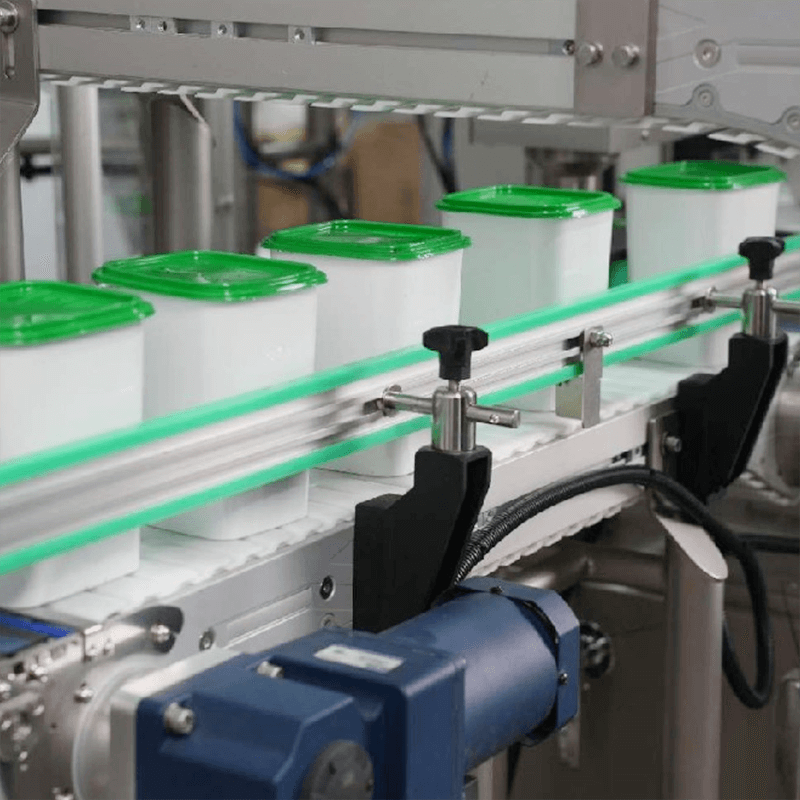

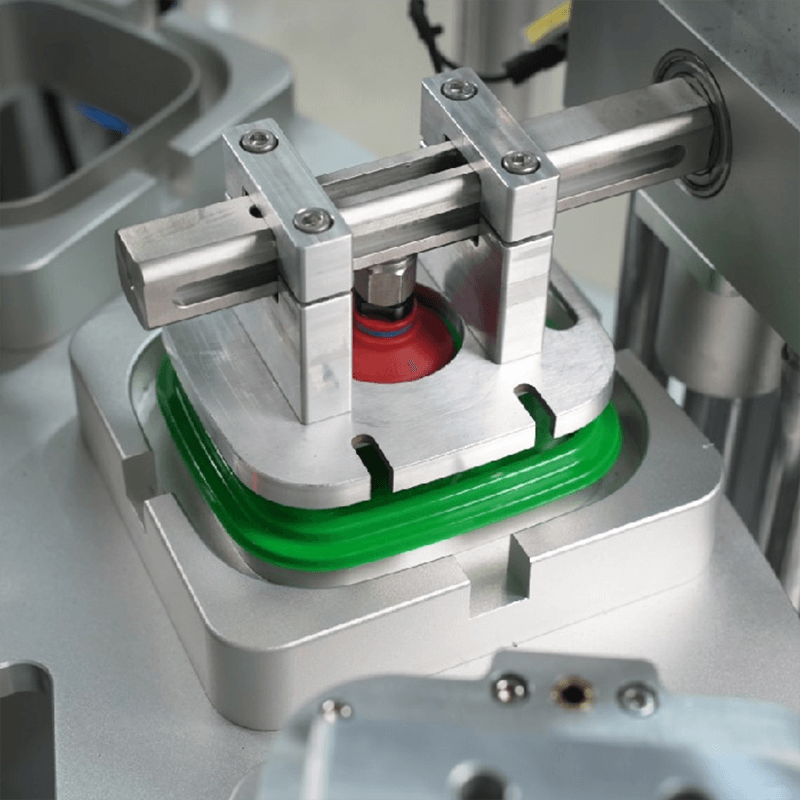

Yes, the Powder Tub Fill Seal Lid Closing Machine integrates filling, sealing, and lid-closing in one system. It automatically feeds lids from the same side as containers, ensuring tight, consistent lid closure to prevent moisture or contamination.
