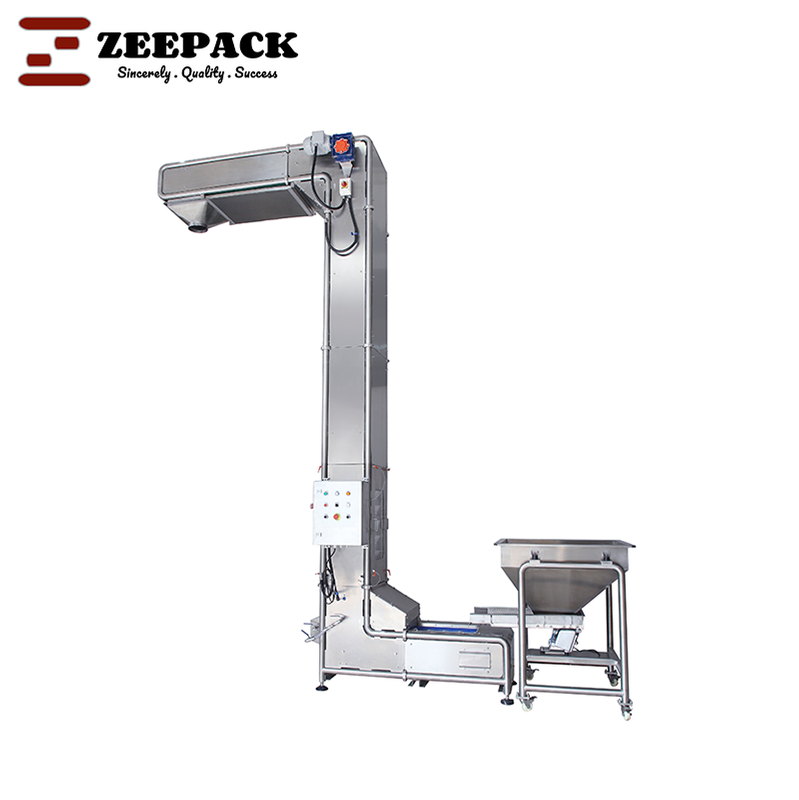

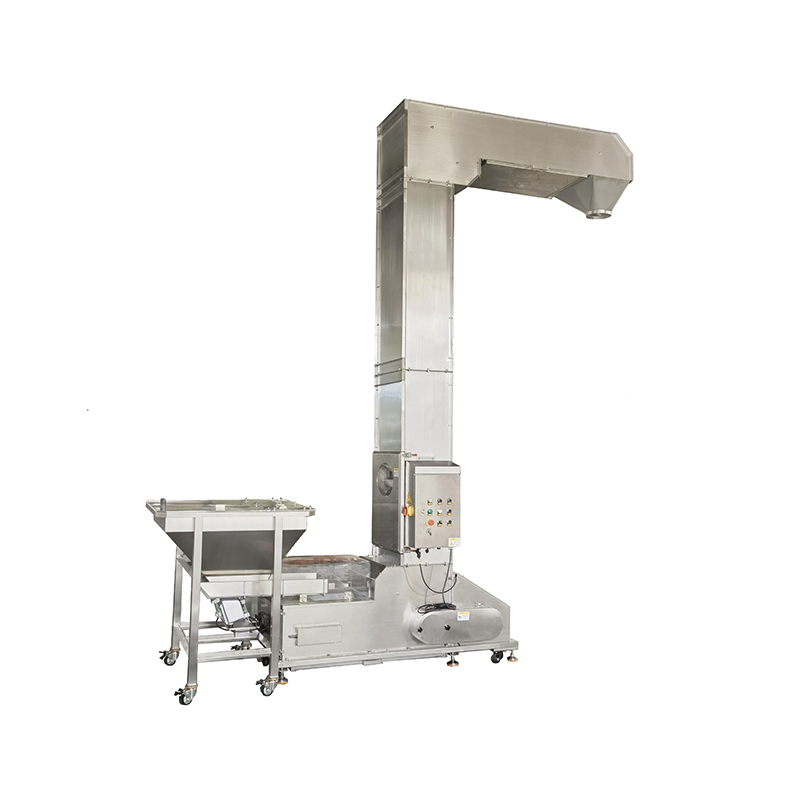

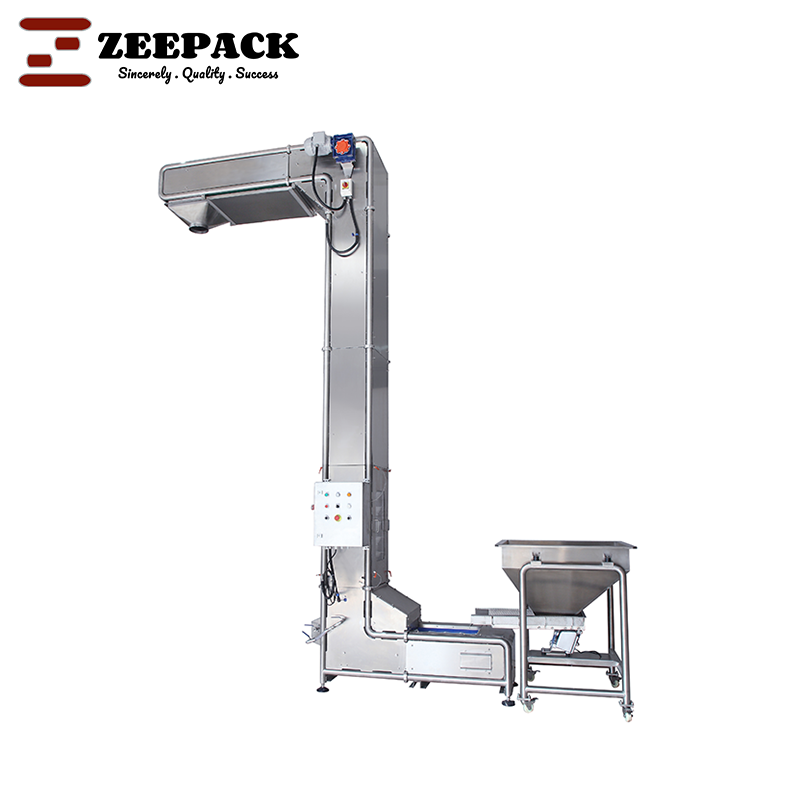

Z-Type Bucket Elevator

Product Overview

The Z-Bucket Elevator is a vertical conveying system engineered for the efficient and hygienic handling of bulk materials such as powders, granules, and small packaged items. Its signature "Z" shaped path, combining vertical lifts with horizontal infeeds and discharges, is specifically designed to maximize throughput in facilities with limited floor space while minimizing product degradation.

Engineered with sanitation as a priority, it features smooth, easy-clean surfaces, sealed housings to prevent dust ingress or leakage, and quick-access panels for inspection and maintenance. Constructed from food-grade 304 or 316 stainless steel, it complies with stringent hygiene standards including FDA, EC 1935/2004, and GMP guidelines.

This system offers flexible configurations with customizable lift heights (typically up to 20 meters), capacities (ranging from 0 to 10 m³/h), and discharge points to integrate seamlessly into automated processing and packaging lines. Its robust design, featuring gentle yet positive conveying in durable polyethylene or stainless steel buckets, makes it a reliable and clean solution for the food, pharmaceutical, and chemical industries.

Key Feature

This equipment is engineered with superior hygiene and maintainability as core principles. Its unique design minimizes sanitary dead corners, while the streamlined yet robust frame structure enhances both aesthetics and durability. Practical features include a concealed wiring layout for a clean profile and simplified washdowns. The system prioritizes ease of maintenance, being easy to clean and disassemble. Crucially, it supports efficient sanitation protocols by allowing buckets to be cleaned and dried in-line, and the entire machine is designed for full washdown capability, ensuring compliance with strict industry hygiene standards.

Technical Parameters

Application

Food & Beverage Industry
As a food-grade vertical conveying solution, the Z-Bucket Elevator is ideal for facilities with limited floor space. It excels at gently transporting bulk food items such as grains, beans, frozen vegetables, and powdered ingredients between different processing stages. Its fully enclosed design and smooth, crevice-free interior prevent product spillage and cross-contamination, while the food-grade stainless steel construction and CIP (Clean-in-Place) capability ensure compliance with HACCP, FDA, and EC 1935/2004 standards, making it safe for handling raw materials and finished products.

Confectionery & Snack Manufacturing
For confectionery and snack producers, the Z-Bucket Elevator solves the challenge of vertical transfer without product damage. It handles delicate items like breakfast cereals, coated nuts, small cookies, and snack pellets gently within enclosed buckets, minimizing breakage and dust generation. The sealed system is crucial for preventing flavor migration when switching between batches (e.g., from salty to sweet profiles). Its smooth, easy-to-clean surfaces and quick-access panels allow for rapid sanitation, reducing downtime during product changeovers and ensuring consistent batch purity.

Health, Medical & Cosmetics Sectors
In these hygiene-critical industries, the Z-Bucket Elevator meets stringent GMP and cGMP requirements. It is suitable for conveying sensitive materials such as pharmaceutical powders, cosmetic granules, vitamin premixes, and small packaged components in a dust-tight environment. The absence of internal ledges and sanitary dead corners prevents material buildup and bacterial harborage, protecting product integrity. Constructed from polished 304 or 316L stainless steel, it supports full washdown and validation protocols, making it a reliable choice for protecting high-purity ingredients and finished goods.

FAQ

Can the Z-Bucket Elevator be customized for my specific material and space constraints?
Absolutely. The Z-Bucket Elevator is highly customizable to fit diverse applications. Key parameters such as lift height, capacity (m³/h), bucket material (polyethylene, stainless steel), and the number of inlet/outlet points can be tailored. It can be configured for gentle handling of fragile products or robust conveying of abrasive materials, making it suitable for industries from food processing to plastics.

How does its “Easy to Clean” design reduce operational downtime and costs?
The design significantly cuts downtime and labor costs through several key features: The CIP (Clean-in-Place) capability allows for in-line cleaning and drying of buckets without disassembly. Quick-release panels and tool-free bucket removal enable fast access and maintenance. Furthermore, the minimized sanitary dead corners and polished surfaces drastically reduce cleaning time and water/chemical usage, ensuring faster product changeovers and compliance.

Is the elevator compliant with international hygiene and safety standards for regulated industries?
Yes. The Z-Bucket Elevator is engineered to meet stringent global standards. Its food-grade 304/316L stainless steel construction, fully enclosed and dust-tight design, and hygienic execution ensure compliance with FDA, EC 1935/2004, GMP, and HACCP requirements. This makes it a reliable and audit-ready choice for food, pharmaceutical, and cosmetic sectors worldwide.

What makes the Z-shaped path advantageous compared to a vertical elevator?
The “Z” path uniquely combines vertical lifting with horizontal infeeds and discharges in a single compact footprint. This eliminates the need for multiple conveyors and transfers, saving valuable floor space. It also allows for more flexible integration into existing plant layouts, enabling material to be drawn from and discharged to different horizontal locations on multiple floors.

How robust is the construction for continuous industrial operation?
Designed for 24/7 reliability, it features a sturdy stainless steel frame, wear-resistant components, and a heavy-duty drive system. The robust construction ensures stable and quiet operation under continuous heavy loads, providing long service life and low total cost of ownership in demanding production environments.
