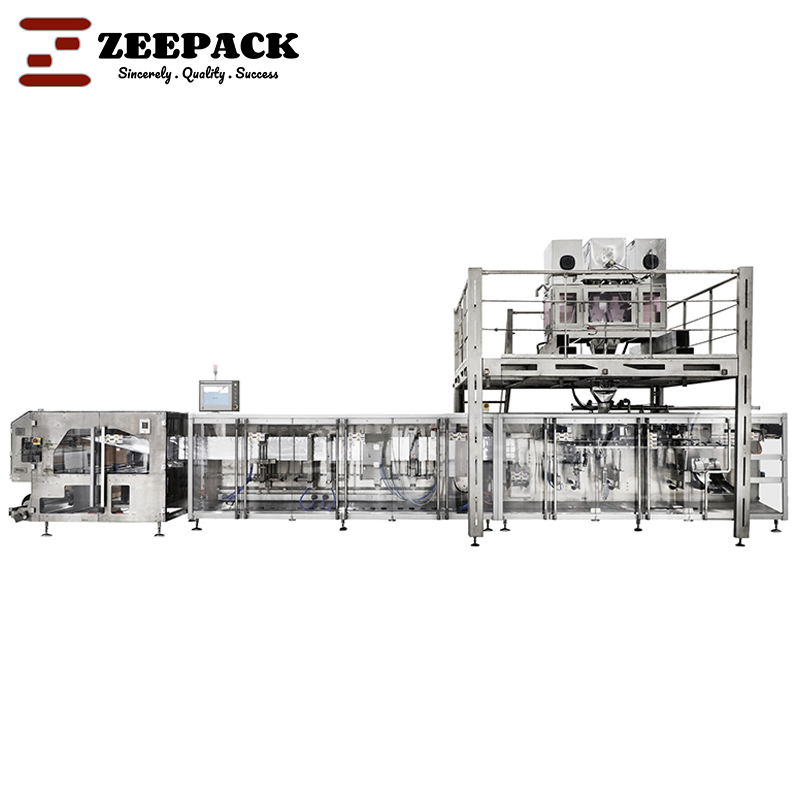

The Flexible Pouch Packaging Machine (models: HFP220, HFP260, HFP330) is a highly automated, versatile packaging system engineered exclusively for prefabricated bags. It streamlines the entire packaging process—from accurately filling various materials (granular, powdered, liquid) into pre-made bags to performing airtight sealing—ensuring consistent reliability and efficiency. With a production capacity ranging from 30 to 70 bags/min (varies by model), this machine supports diverse pouch types (e.g., stand-up pouch, spout pouch, flat 3/4-side sealed pouch, Doypack gusseted pouch) and adapts to pouch sizes from 90×140mm to 315×418mm. Equipped with PLC control and HMI interface, it enables user-friendly operation, seamless integration into existing production lines, and rapid parameter adjustments, making it ideal for small-to-large scale manufacturing.
Model | HFP220 | HFP260 | HFP330 |
Capacity | 50-70 bags/min | 30-55 bags/min | 30-50 bags/min |
Pouch Type | Stand-up pouch, Spout pouch, flat Pouch (3&4-side sealed pouch), Stand-up zipper pouch, Doypack (gusseted pouch), etc. | ||
Pouch Size | W: 90-200mm L: 140-280mm | W: 100-245mm L: 140-360mm | W: 150-315mm L: 200-418mm |
Voltage | 380V 3PH 50Hz (can according to customer's request customize) | ||
Dosing System | Customized by customers' requests--combined scale, linear weigher, auger filler, piston filler, etc. | ||
Power | 9.5KW | 10KW | 11KW |
Air Consumption | 0.6-1.5m³/min | 0.6-1.5m³/min | 0.6-1.5m³/min |
Pressure | 0.6Mpa | ||
Dimension (mm) | L7760*W1450*H1945 | L8800*W1705*H1945 | L9850*W1955*H1945 |
Weight | 7000kg | 8200kg | 9500kg |
Crafted with high quality design, the machine minimizes material waste while maximizing output—critical for cost-sensitive industries. Its robust structure ensures long-term durability, even in high-volume production environments.
Powered by PLC control and a user-friendly HMI interface, the system reduces manual intervention. Operators can easily monitor workflows, adjust settings, and troubleshoot, cutting down on training time and human error.
It handles a wide range of prefabricated bag types. From lightweight flat pouches to heavy-duty stand-up zipper pouches, eliminating the need for multiple machines for different packaging formats.
Designed for flexibility, the machine features fast size changeover—a key advantage for businesses producing multiple product variants. Switching between pouch sizes takes minimal time, reducing downtime and boosting productivity.
With full safety consideration & protection (e.g., emergency stop buttons, safety guards), it meets global safety standards. Additionally, its environment protective packing technology reduces energy consumption and carbon footprint.
It supports customized dosing systems (combined scale, linear weigher, auger filler, piston filler) tailored to material propertie. Ensuring accurate filling for powders (e.g., cocoa powder) and liquids (e.g., ketchup) alike.
Ideal for coffee packaging, snacks packaging, and dried fruits packing. It maintains product freshness through airtight sealing, making it a top choice for premium food brands.
Perfect for pet food packaging (dry kibble, freeze-dried treats). Its durable sealing prevents moisture ingress, preserving pet food quality and shelf life.
Excels in protein powder filling, milk powder packaging, and cocoa powder packing. The precise dosing system ensures consistent portioning, critical for nutritional product accuracy.
Reliable for ketchup packaging, mayonnaise filling, and sauce sealing. Its leak-proof sealing technology avoids spillage and maintains product hygiene.
It accommodates pouch widths from 90mm (HFP220) to 315mm (HFP330) and lengths from 140mm to 418mm—covering most standard prefabricated bag sizes.
Yes, the default voltage is 380V 3PH 50Hz, but voltage customization is available to match regional power standards (e.g., 220V for North America).
Absolutely. Pairing the machine with a piston filler (customizable dosing system) ensures smooth filling of high-viscosity liquids like mayonnaise or thick sauces.
