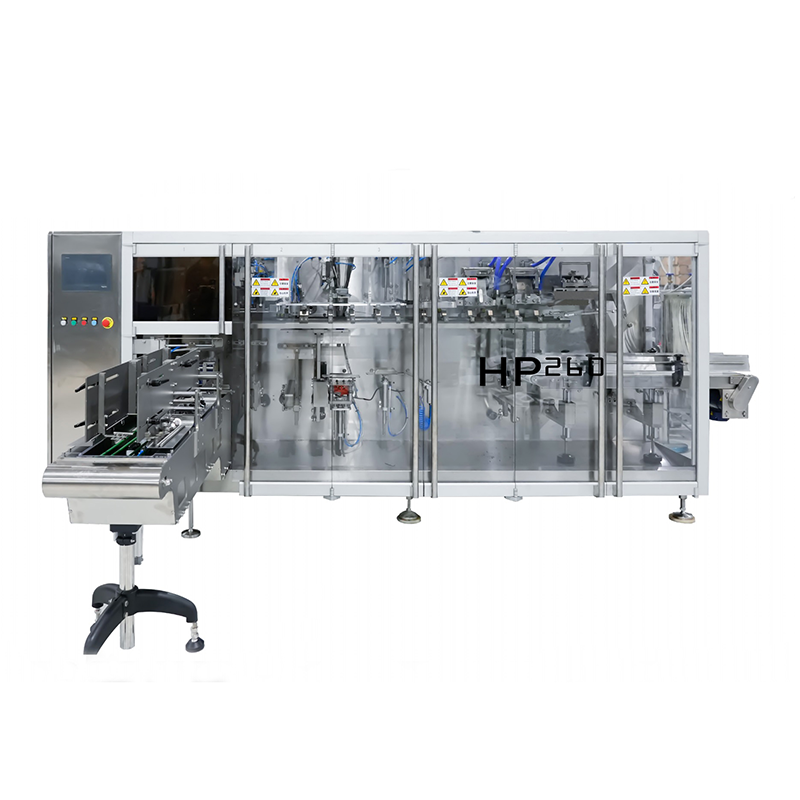

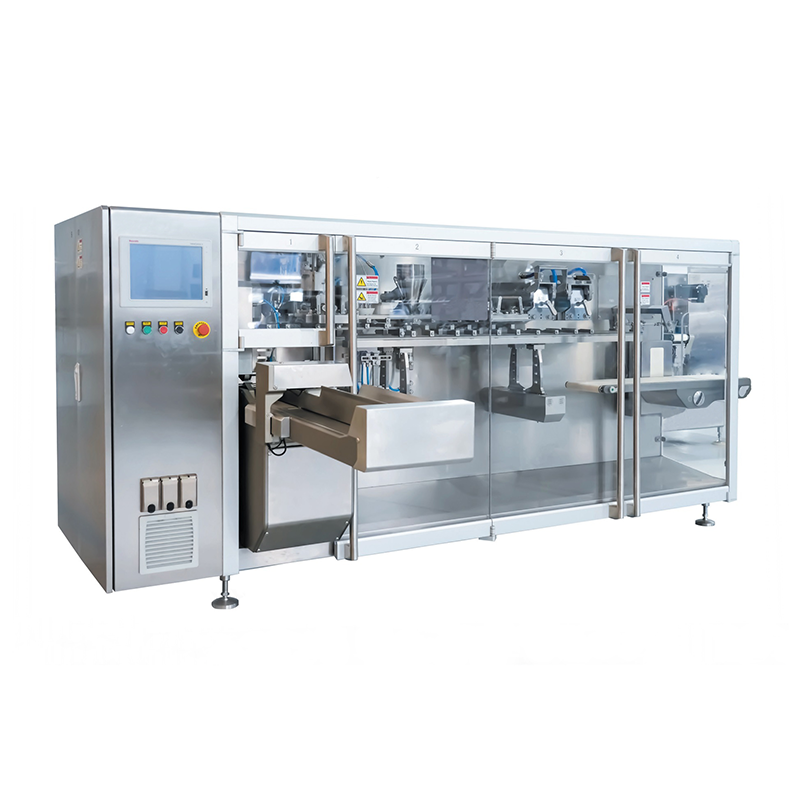

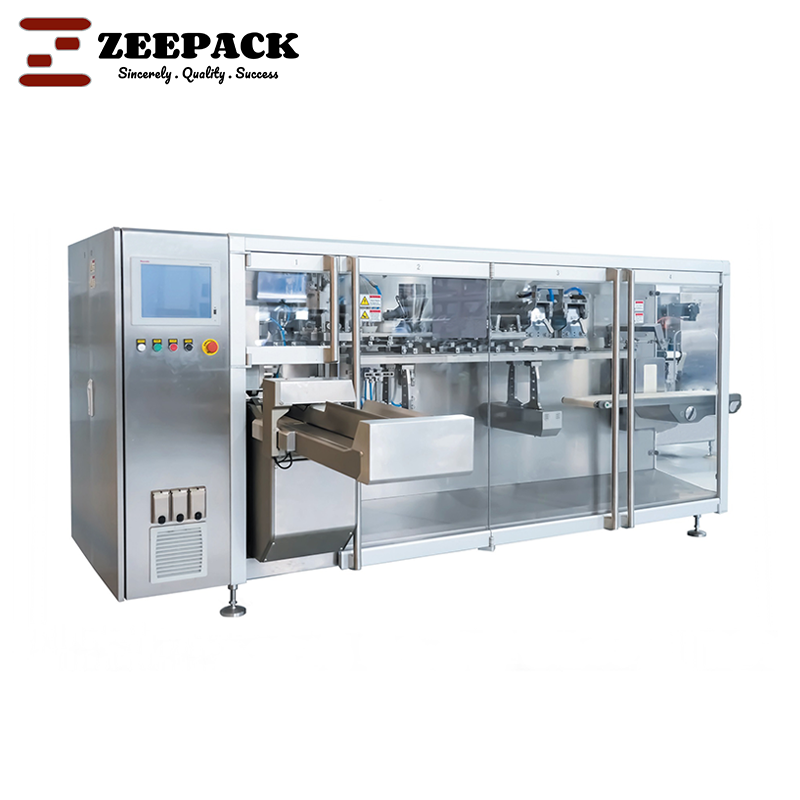

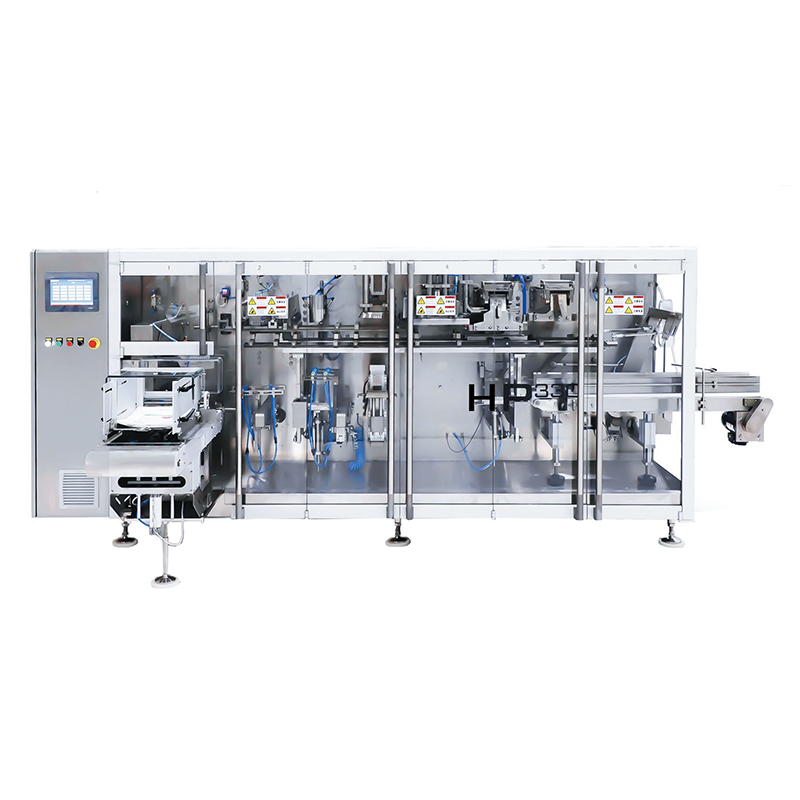

The HP Series Horizontal Pre-Made Pouch Bagging Machine is a fully automated, flexible solution engineered for medium-width pre-made pouches. Unlike rotary alternatives, its horizontal structure excels at handling diverse materials—granules (pet food), powders (cocoa powder), and liquids (ketchup)—with precision. Boasting a production capacity of 20-70 bags/min (varies by model: HP220 to HP-460), the HP Series balances speed and accuracy, with fast size changeover and robust automation to adapt to dynamic production needs. Integrated with PLC control and HMI, it ensures consistent packaging quality, making it ideal for industries prioritizing efficiency, versatility, and product safety.
The HP Series’ horizontal design is optimized for medium-width pouches (W85-440mm/L85-480mm), ensuring stable feeding, filling, and sealing. This structure reduces pouch misalignment (a common vertical machine issue) and supports heavier/thicker pouches for products like large-format pet food.
A standout feature: operators switch between pouch sizes in minutes via intuitive controls, no complex tooling required. This is a game-changer for businesses with frequent product rotations, minimizing downtime.
Equipped with a PLC intelligent control system and user-friendly HMI touchscreen, the HP Series simplifies operation. All settings (filling volume, sealing temperature) are adjustable digitally, while real-time data display lets operators monitor production and resolve issues quickly.
Precision heating elements and temperature control deliver airtight sealing—critical for preserving freshness of perishables (dried fruits, coffee) and preventing leaks in liquids (sauces, dressings). Seals remain durable during transportation.

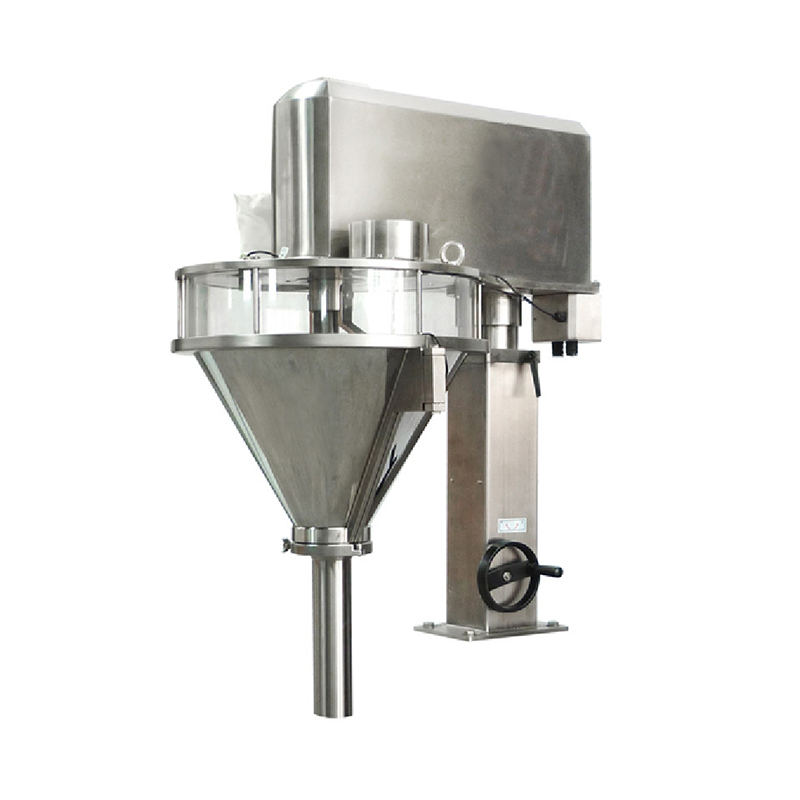

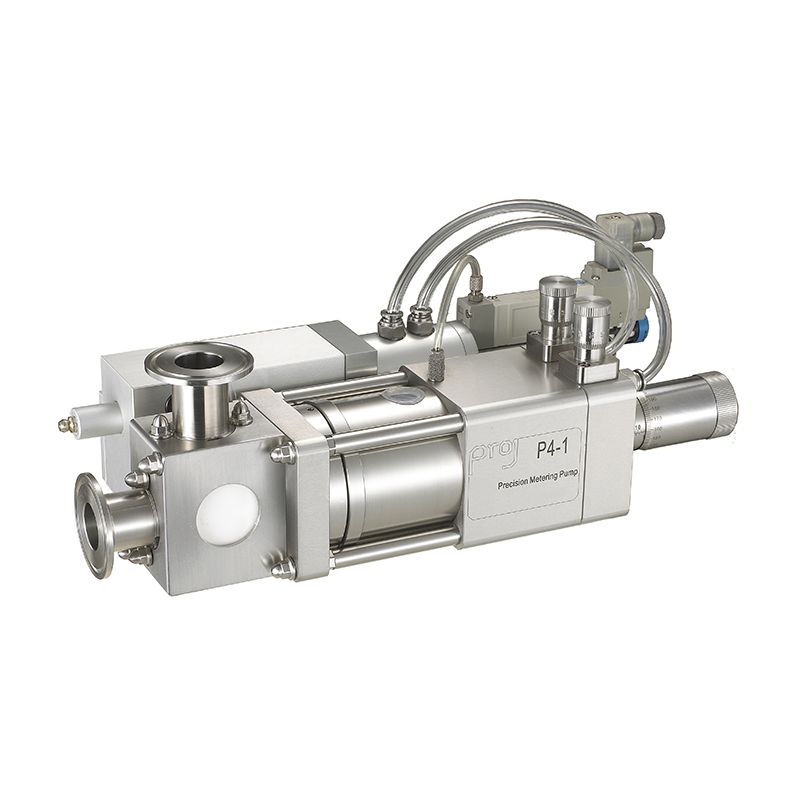

To handle diverse products, the HP Series offers tailored filling systems: piston fillers (liquids/creams), auger fillers (powders), and multi-head weighers (granules). This eliminates the need for multiple machines, cutting equipment costs and saving factory space.
It includes protective covers for moving parts and emergency stops, complying with global safety standards. Energy-efficient motors and food-grade contact surfaces align with eco-friendly and hygienic production goals.
Technical Parameters
Model | HP220 | HP260 | HP330 | HP-460 |
Capacity | 40-70 bags/min | 30-55 bags/min | 25-45 bags/min | 20-40 bags/min |
Pouch Type | Stand-up pouch, Spout pouch, flat Pouch(3&4-side sealed pouch), Stand-up zipper pouch, Doypack (gusseted pouch), etc. | |||
Pouch Size | W: 85-205mm L: 85-300mm | W: 100-245mm L: 140-360mm | W: 150-315mm L: 200-450mm | W: 200-440mm L: 200-480mm |
Voltage | 380V 3PH 50Hz (can according to customer's request customize) | |||
Dosing System | Customized by customers' requests--combined scale, linear weigher, auger filler, piston filler, etc. | |||
Power | 6.0KW | 7.0KW | 7.5KW | 9.5KW |
Air Consumption | 0.6-1.5m³/min | 0.6-1.5m³/min | 0.6-1.5m³/min | 0.6m³/min |
Pressure | 0.6Mpa | 0.6Mpa | 0.6Mpa | 0.6Mpa |
Dimension (mm) | L3460*W2085*H1470 | L3070*W2085*H1470 | L3890*W2230*H1560 | L3433*W2506*H1812 |
Weight | 2000kg | 3200kg | 4200kg | 5500kg |
The HP Series packages snacks (potato chips, nuts), dried fruits, and liquid sauces (ketchup, mayonnaise). Precise filling/sealing prevents spillage, while versatile pouches boost retail appeal.
For dry pet food, treats, and supplements, it handles medium-to-large pouches, ensuring accurate portioning and sealed freshness—protecting against contaminants.
Ideal for coffee beans, ground coffee, and instant mixes. Airtight sealing preserves aroma, and an optional gas flush device (select models) extends shelf life by replacing oxygen with inert gas.
It packages cosmetic scrubs, liquid soaps, and detergent powders. Corrosion-resistant components and hygienic design meet industry standards for these sensitive categories.
Its horizontal structure is optimized for medium-width pouches and liquids, with faster changeover and a more compact footprint—perfect for space-constrained factories.
Yes. The optional piston filler enables leak-free filling of liquids/creams, with precise volume control and secure sealing.
Standard voltage is 380V 3PH 50Hz (customizable for regions like 220V). Power consumption ranges from 6.0KW (HP220) to 9.5KW (HP-460).
Yes. Support includes installation guidance, user manuals, and one-to-one video assistance. Local service centers (Europe, Asia) offer maintenance to minimize downtime.
Absolutely. It uses food-grade materials and complies with CE/GMP standards, ensuring safe production for consumables.
