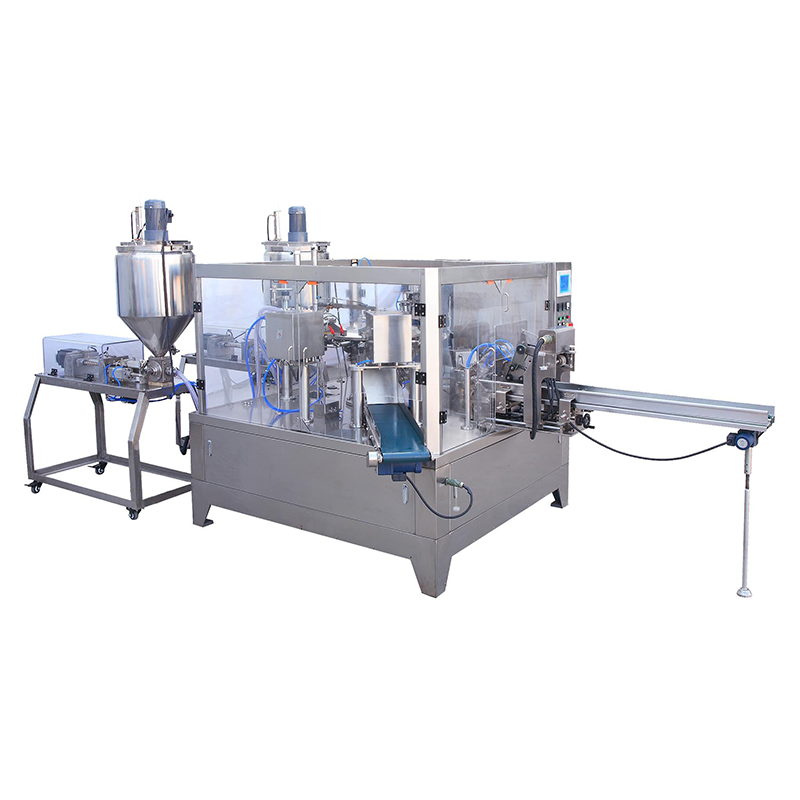

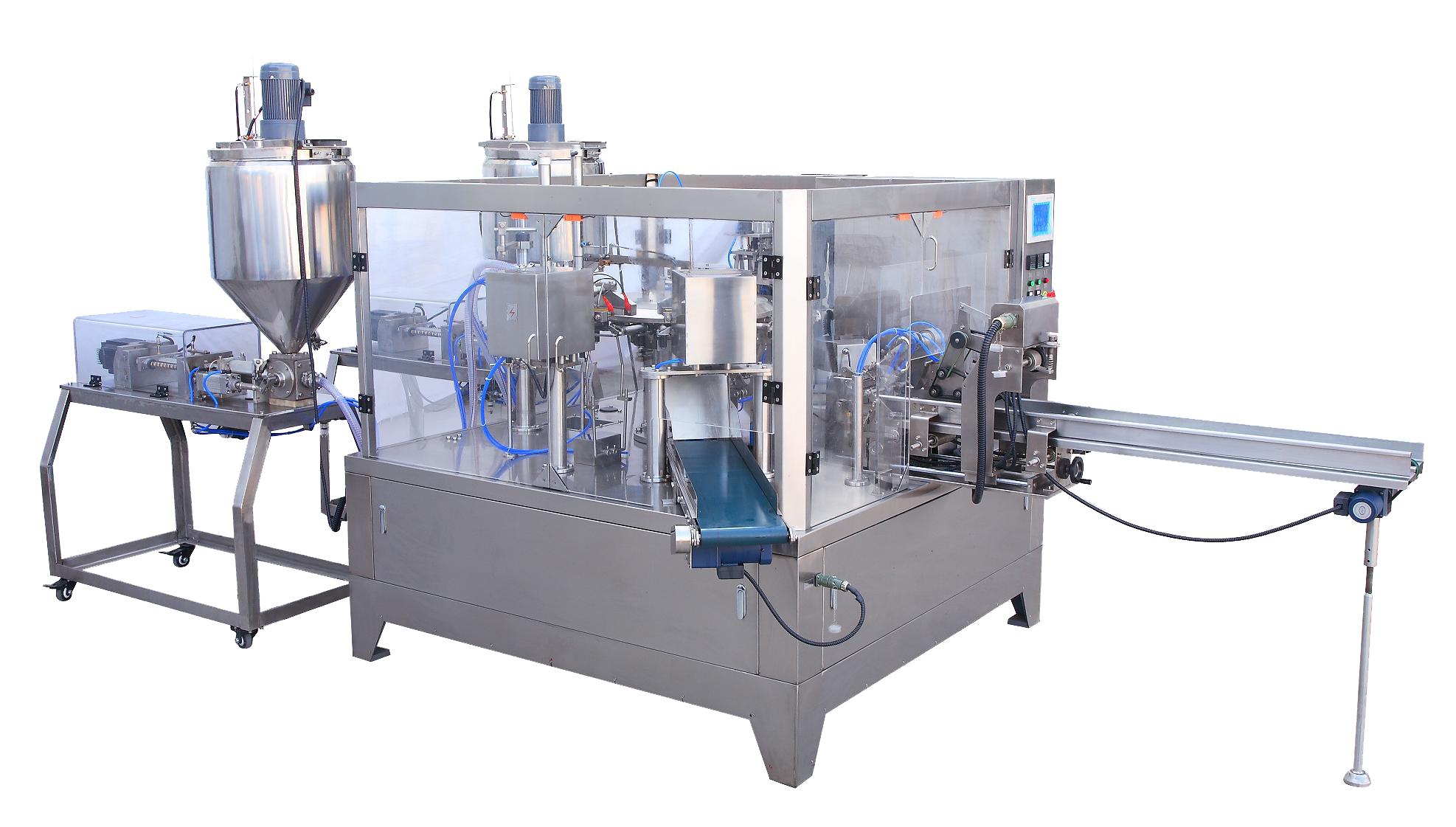

The Efficient Rotary Liquid-Paste Premade Pouch Packaging Machine automates the entire process—from premade pouch handling to leak-proof sealing—with a speed range of 15–35 bags/min. Unlike powder-focused machines, it features specialized components (e.g., auger fillers, cooling stations) to address liquid/paste challenges (e.g., leakage, viscosity). With a robust build (1600–3000kg) and integrated metal detector, it meets safety standards for food, cosmetics, and pharmaceuticals.

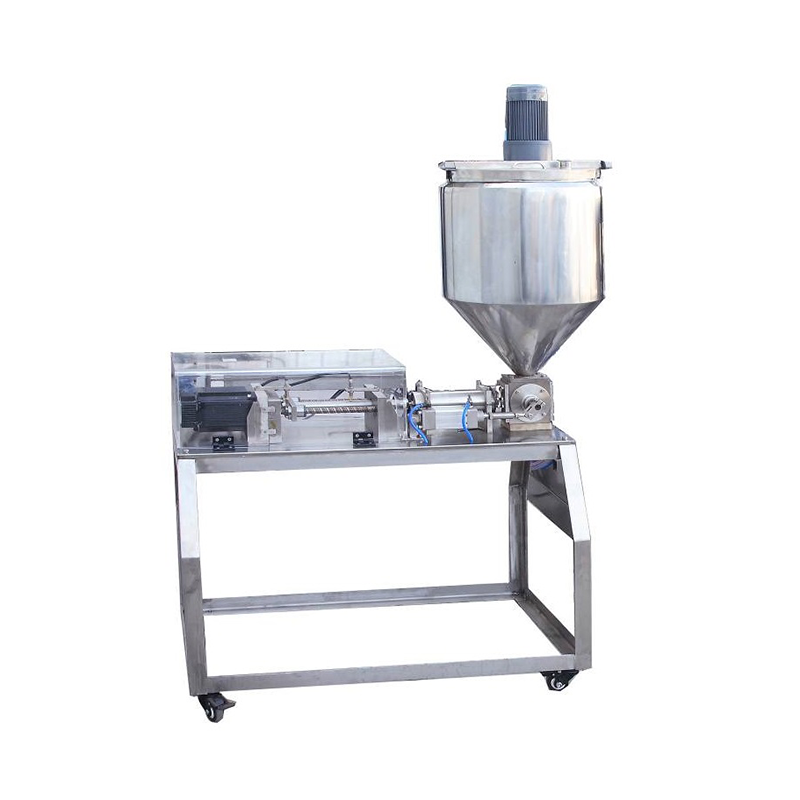

The machine uses a high-precision Piston Filler tailored to liquid and paste viscosities—from thin liquids (e.g., fruit syrups) to thick creams (e.g., body lotions). The filler's adjustable speed and pressure prevent dripping and ensure consistent filling volume, critical for avoiding product waste.

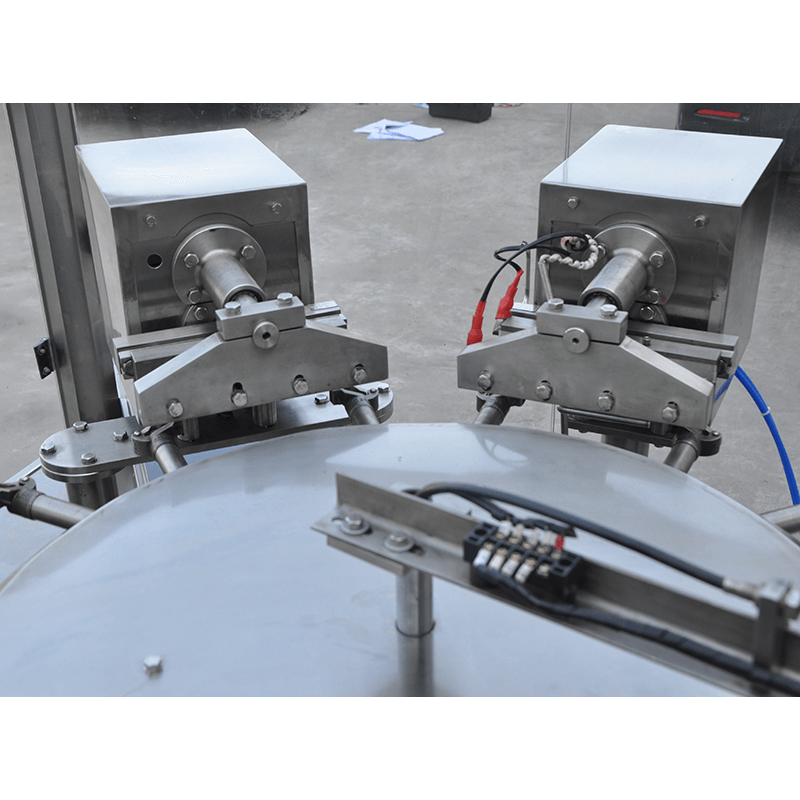

To eliminate leakage, it combines heat sealing with ultrasonic welding for double-layer sealing. A built-in cooling station rapidly cools sealed areas after packaging, preventing seal damage from hot liquids (e.g., sauces) and ensuring long-term package integrity.
It supports popular premade pouch styles: stand-up pouches, spout pouches, flat pouches, zipper pouches, and Doypacks. Pouch sizes range from W100–350mm to L100–500mm, and it works with liquid-resistant materials (e.g., aluminum-plastic composites, polyethylene) to prevent material degradation.
A standard metal detector scans every package for metal impurities (e.g., tiny fragments from production), automatically rejecting contaminated products. This feature is essential for food and pharmaceutical compliance, reducing safety risks for end-users.
With a 3.0–4.5KW power system, 0.6Mpa air pressure, and 0.6m³/min air consumption, the RP8-P Series balances efficiency and performance. Its corrosion-resistant steel frame withstands frequent cleaning (critical for liquid/paste residue) and extends machine lifespan in humid production environments.
Technical Parameters
Model | RP8-200L | RP8-250L | RP8-300L | RP8-350L |
Capacity | 25-35 bags/min | 25-35 bags/min | 20-30 bags/min | 15-25 bags/min |
Pouch Type | Stand-up pouch, Spout pouch, flat Pouch (3&4-side sealed pouch), Stand-up zipper pouch, Doypack (gusseted pouch), etc. | |||
Pouch Size | W: 100-210mm L: 100-350mm | W: 150-260mm L: 150-360mm | W: 200-300mm L: 200-450mm | W: 250-350mm L: ≤500mm |
Voltage | 380V 3PH 50Hz (can according to customer's request customize) | |||
Dosing System | Rotary valve pump, single valve pump, servo pump, lobe pump, etc (customized by customers' requests) | |||
Power | 3.0KW | 4.0KW | 4.0KW | 4.5KW |
Air Consumption | 0.6m³/min | 0.6m³/min | 0.6m³/min | 0.6m³/min |
Pressure | 0.6Mpa | 0.6Mpa | 0.6Mpa | 0.6Mpa |
Dimension (mm) | L2739*W2031*H1610 | L3153*W2215*H1700 | L3152*W2215*H1700 | L3433*W2506*H1812 |
Weight | 1600kg | 2000kg | 2500kg | 3000kg |
Applications
The Efficient Rotary Liquid-Paste Premade Pouch Packaging Machine excels in packaging liquid and paste products across industries:
Food Industry: liquid detergents, fruit syrups, tomato sauce, honey, and yogurt;
Cosmetic Industry: cosmetic creams, shampoo, body lotion, and face masks;
Pharmaceutical Industry: pharmaceutical ointments, oral liquids, and herbal extracts.
Its leak-proof design and hygiene compliance make it suitable for products requiring strict contamination control.
The Piston Filler adjusts its rotational speed and pressure to push thick pastes smoothly through the filling channel, avoiding clogs. The filler’s detachable design also simplifies cleaning after processing sticky products.
It is recommended for hot liquids (e.g., 80°C sauces) to prevent seal softening. For room-temperature liquids (e.g., syrups), the cooling station can be disabled to optimize speed.
Contact parts (e.g., piston filler, filling nozzle) are made of food-grade stainless steel and detachable for manual cleaning. For high-volume operations, an optional clean-in-place (CIP) system enables automated rinsing, reducing downtime.
It comes with a 1-year standard warranty covering mechanical and electrical components. Extended warranties and maintenance services are available for long-term production needs.
