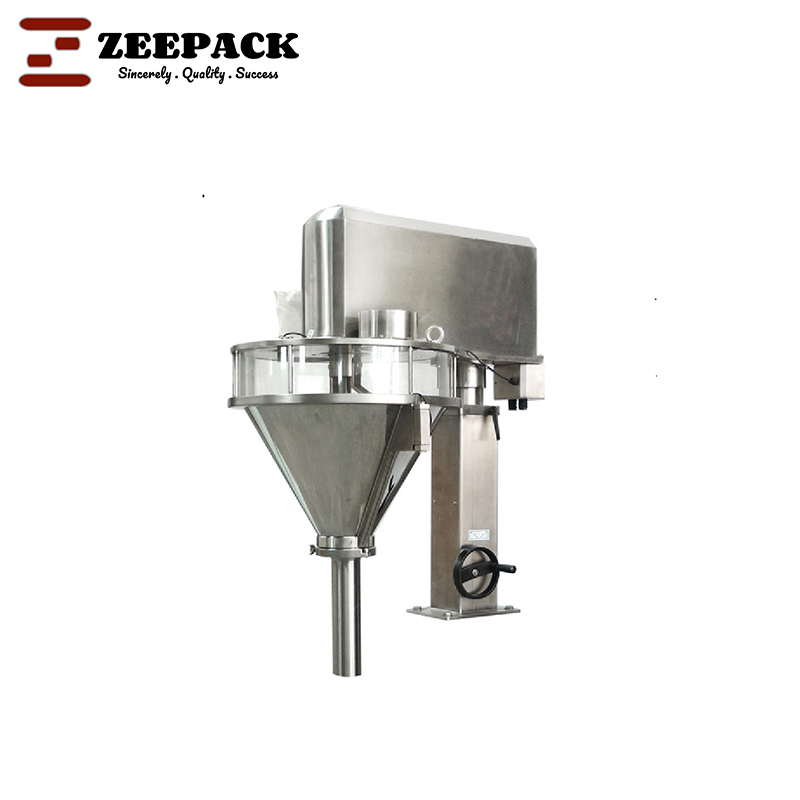

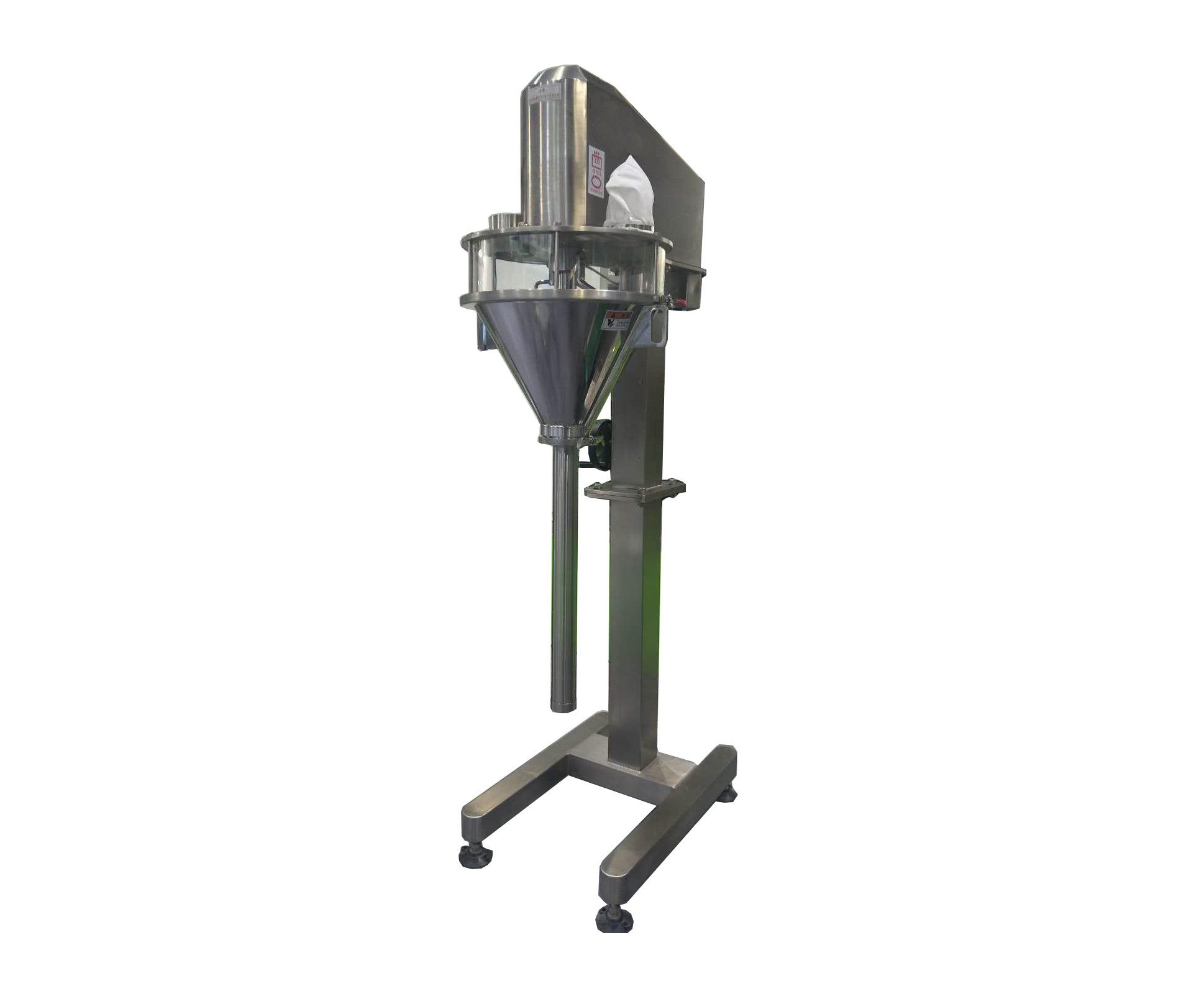

Auger Filler

Auger filling machine with touch screen HMI and PLC , it can work as semi-automatic filling machine independently or as filler of automatic machine like VFFS,HFFS or doypack machines.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description ▼

It is suitable for food, medicine, feed, chemical and other fields, can be used for powder and small particle material quantitative packaging, such as milk powder, flour, seasoning, spices, feed, chemical raw materials, powder and so on.

Features▼

-Servo-driven auger system

-Full-body 304SS hopper

-Vertical semi-open design (tool-free disassembly)

-Mirror-polished contact surfaces

-Quick-release auger mechanism

Technical parameter▼

Model	AF-1000	AF-2000	AF-5000
Application	Fill non flowing or flowing products Powder; Small Granules into bag, can, bottle jars etc.
Filling range	0-500g	0-1500g	0-5000g
Hopper Volume	25L	50L	70L
Servo Motor	1.4kw	2.2kw	3.2kw
Machine weight	150kw	220kg	350kg
Machine size	L780-W730-H1690	L950-W1000-H2050	L1050-W1100-H2250
Filling speed	25-35 fills/ minute(depend on operator)
Electric Supply:	220V-240V; single phase/50-60HZ
Options	Spanner/Dust collector/ SS316L/ auger feeder/ height adjustable head
